Navigating your floorplan

Place elements on the floor plan

To place elements onto your floor plan, you can simply drag and drop an element from the Elements list to the desired location on your canvas.

Unplace element

You have the option to remove elements from the floor plan that you have already added. To do so, follow these steps: locate the element on the floor plan, right-click on it, and choose the "Remove from floor plan" option. This will move the element back to the list of unplaced elements. You can place it back on the floor plan whenever you need it. Keep in mind that if you remove an element that is part of a Space, it will also be removed from the Space.

Zoom in - out

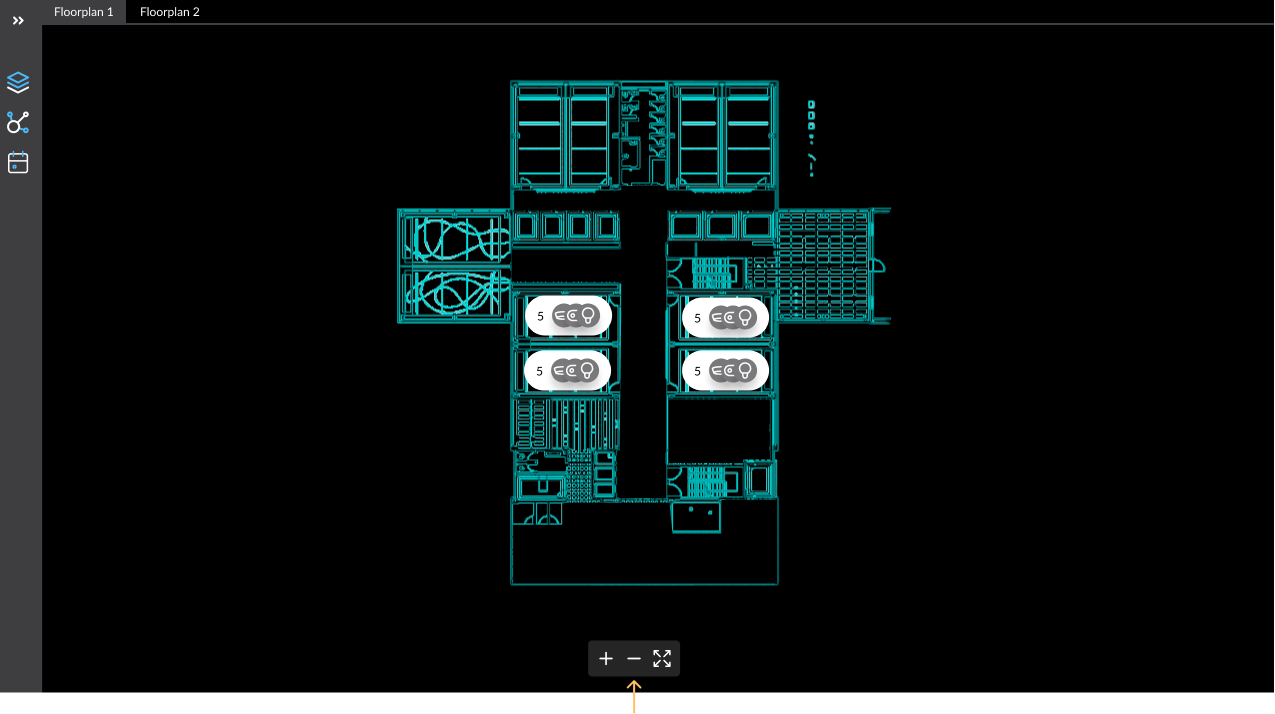

To zoom in or out on your canvas, you have access to two floating buttons located at the bottom of the screen. Clicking the "+" button allows you to zoom in, while clicking the "-" button enables you to zoom out. Alternatively, you can also use your trackpad or mouse to zoom in or out by scrolling. When you zoom out, you'll notice that elements close to each other will group together in visual clusters. It's important to note that these clusters are purely visual elements designed to enhance the organization of your floor plan and do not represent functional groups or spaces.

Zoom to Fit

To quickly visualize your entire floor plan, you can click on the "Zoom to Fit" button. This action will zoom out the canvas to ensure that the entire floor plan fits within the screen.

Device Clustering

Since version 24.7, you can choose to see your elements clustered or not. Go to "View - Cluster" Devices on Canvas to toggle the clustering option.

Canvas panning

To navigate through your canvas, you can press the spacebar on your keyboard. As you do so, your cursor will change to a hand icon, allowing you to drag the canvas and move around freely.

Control

You have complete control over all your elements directly from the Project tool feature. When you select an element from either the Elements list or the floor plan, you will immediately see its corresponding control options displayed on the Inspector panel.
