Calibrate sensor

Calibrate the sensor for the first CLC use

When you first turn on the CLC in a space, you need to calibrate the sensor to align its measurements with the values obtained from a luxmeter used to measure the space.

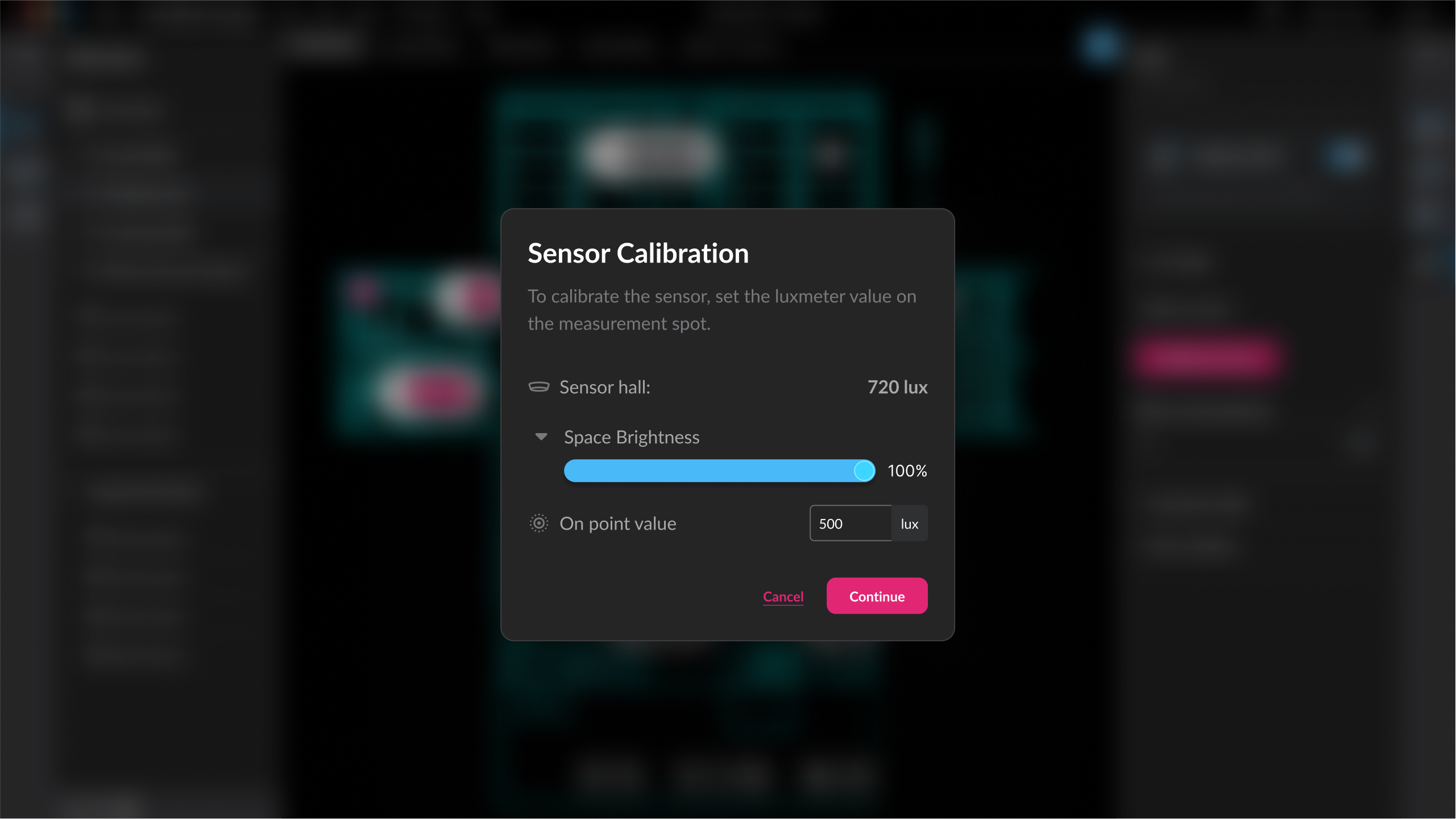

The first value you see is the real-time measurement of the sensor. You can manually adjust the brightness of the space to achieve a specific value and observe how it affects the luminaires. Next, enter the value displayed on the luxmeter at the desired location in the "On point value" input field.

With this, you will link the sensor value with the "On point value" so that it changes accordingly and the CLC reaches the target value you set later.

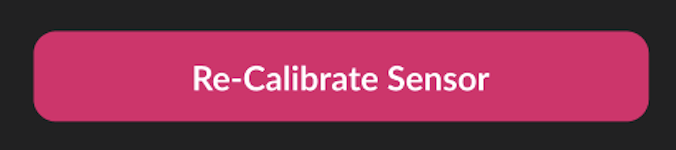

To repeat this action, click on the "Re-calibrate sensor" option in the inspector panel.
