Configure your CLC

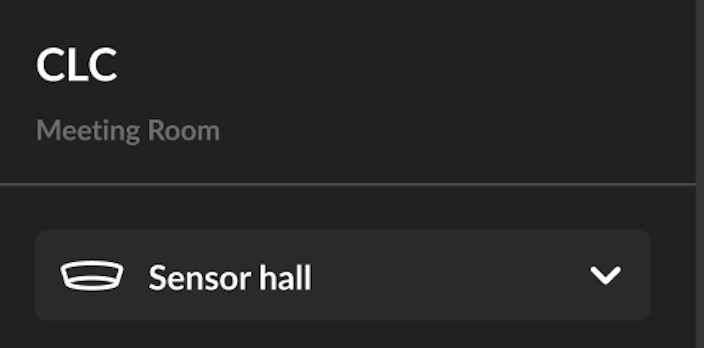

Sensor selection

In your Space, you may have different sensors. To read the luminosity of the space, you need to select the sensor you want from the dropdown menu at the top of the inspector panel.

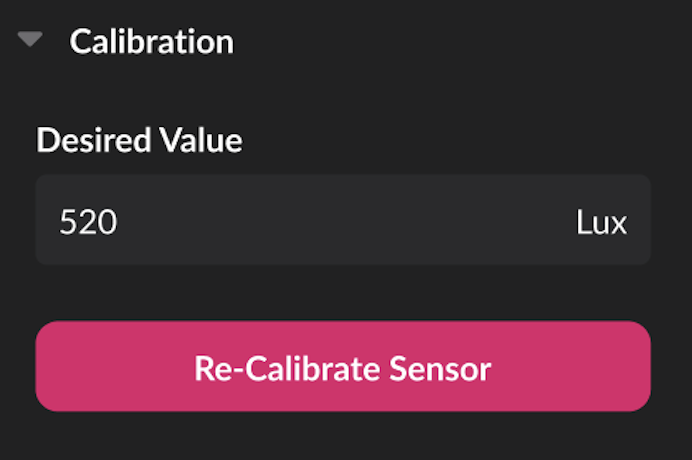

Set the target value

Once you have calibrated your sensor, you need to define the desired value for your space. This is the target value that the CLC's Project Tool will continuously try to reach.

To define this value, enter the lux value in the "Desired value" input field in the inspector panel.

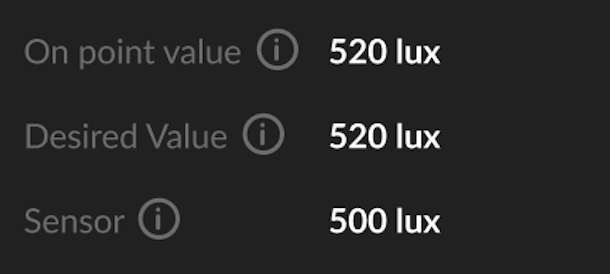

To ensure that the desired value is reached, you need to check that the "On point value" matches the "Desired value."

Please keep in mind that sometimes the number of luminaires may not be sufficient to achieve high values.

Behaviour configuration

On this section in the inspector panel you can deeply configure how your CLC must behaves.

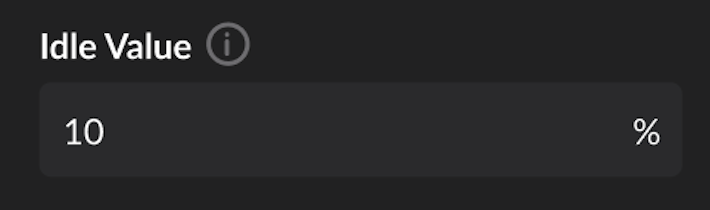

In the "Idle value" section, you can specify the minimum percentage of brightness that the luminaires can have. This is important, for example, if you want to ensure that the luminaires are never completely turned off.

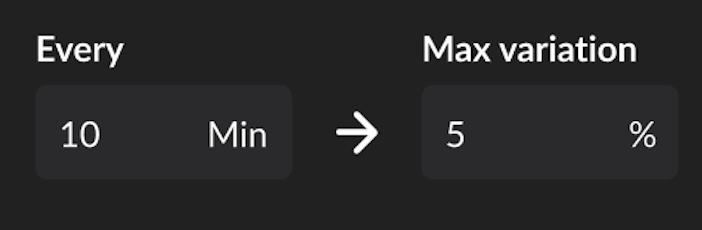

You can adjust the percentage of brightness variation for the luminaires to change at specific intervals, which allows for a smoother or faster experience. For instance, if you prefer smoother transitions, increase the amount of time and decrease the maximum variation. Conversely, if you need changes to be reflected quickly, opt for a larger variation every few minutes.
