Library of contents in the Mapping Tool

From the Mapping Tool you can use different default content, which you can modify to unleash your imagination and create new amazing content.

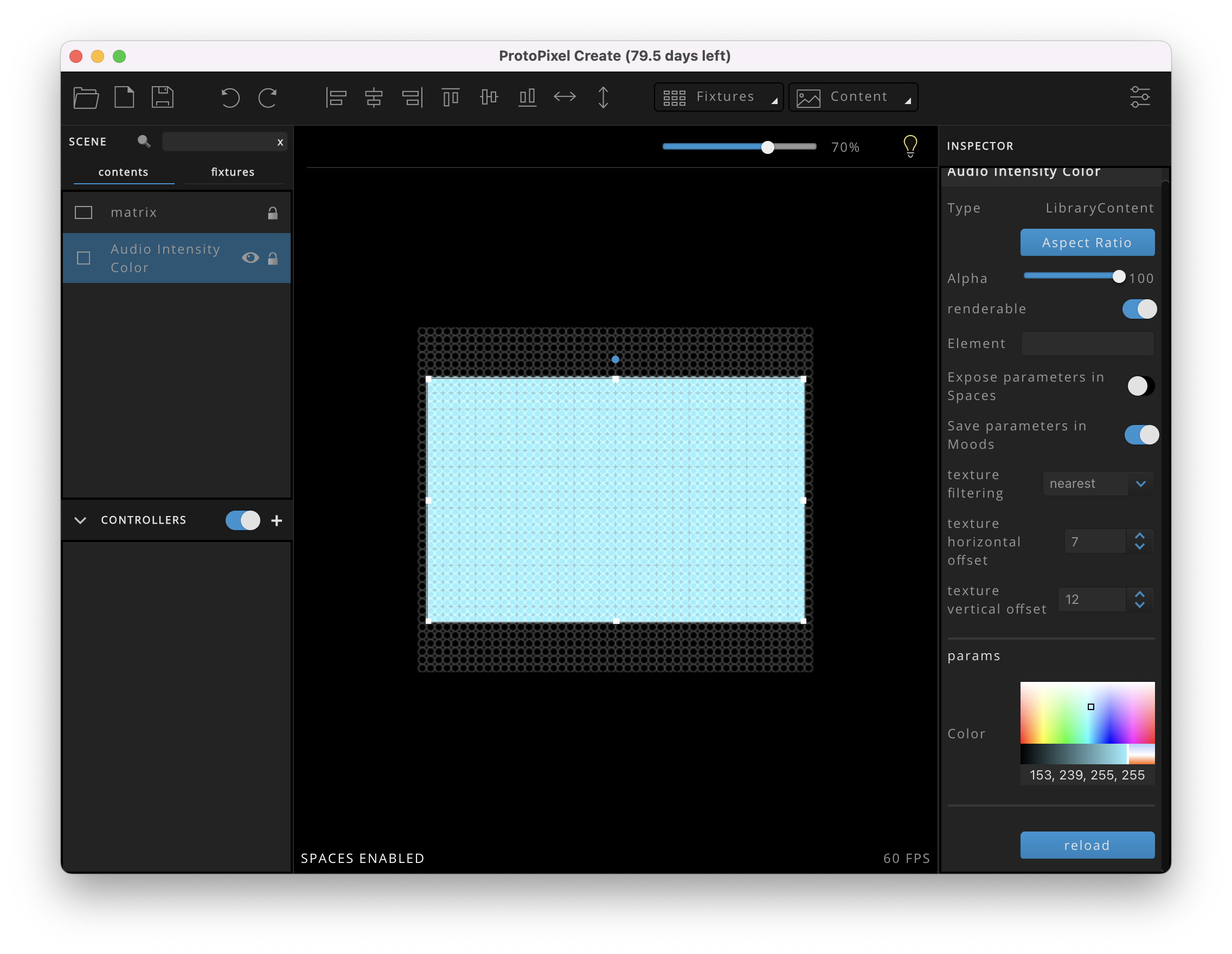

Audio Intensity

Description: This interactive content reacts with sound. Can be integrated with a microphone from a computer or other external source.

Features:

• Color selection palette.
• Audio input setup.
• Texture filtering: linear/nearest.
• Alpha: This allows you to modify the alpha color level.

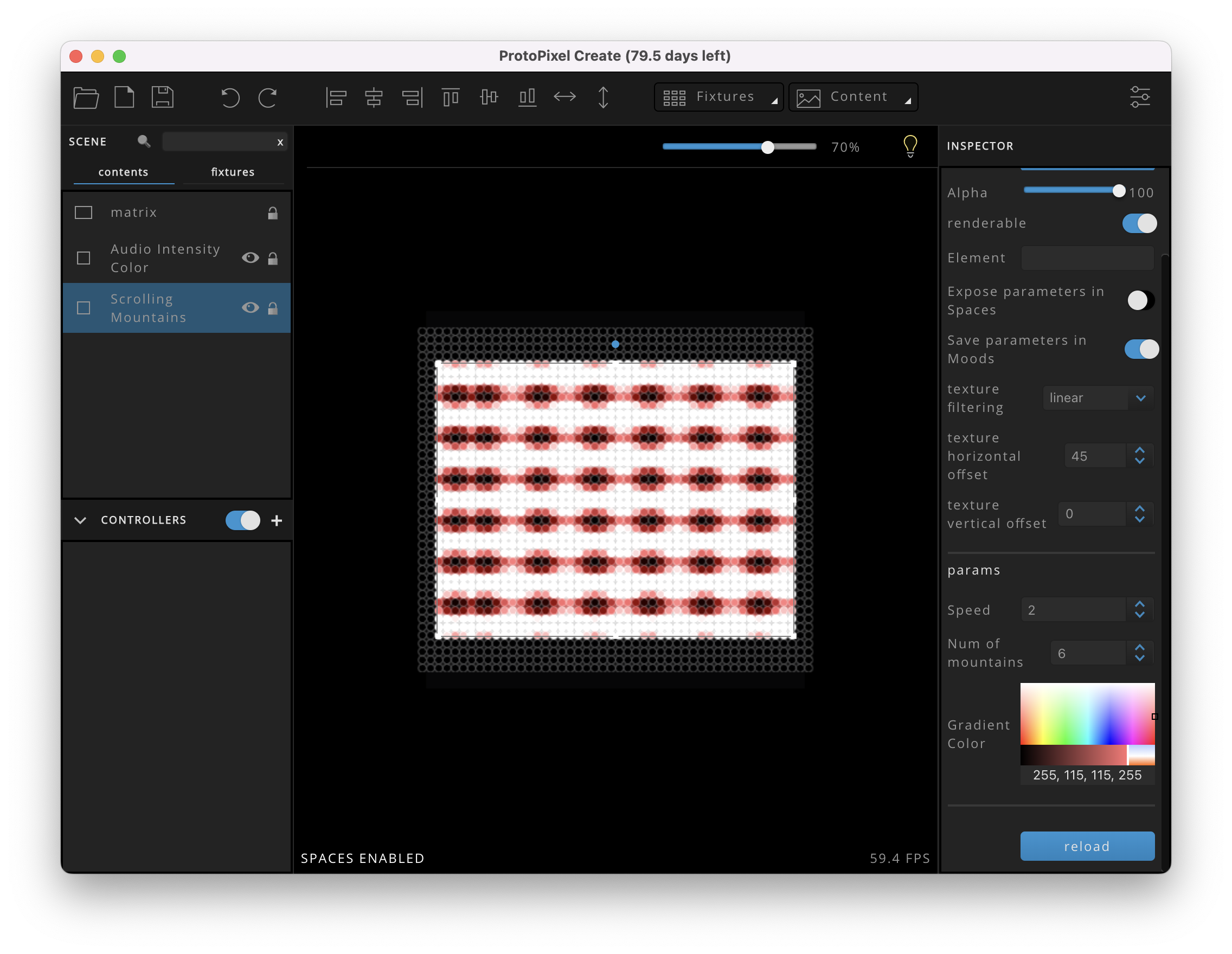

Scrolling Mountains

Description: This interactive content reacts with sound. Can be integrated with a microphone from a computer or other external source.

• Speed: It allows you to modify the speed of the content.
• Number of mountains: This allows you to modify the number of shapes inside the mask.
• Alpha: This allows you to modify the alpha color level.
• Texture filtering: Linear/nearest.
• Texture horizontal offset.
• Texture vertical offset.
• Gradient Color:  this allows you to select the base color from the color palette.

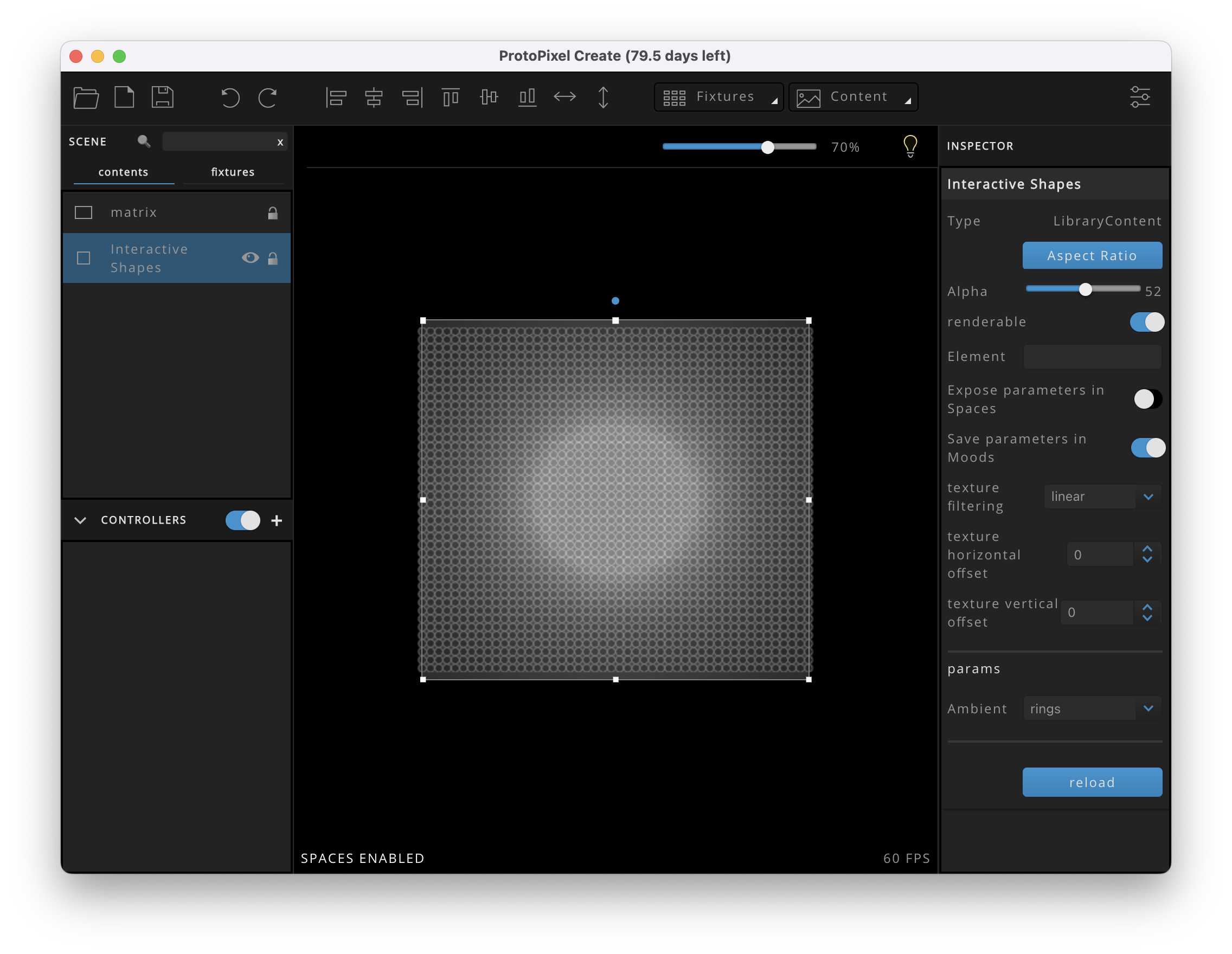

Interactive Shapes

Description: This content displays colored textures in rings or waves.

Features:

• Ambient: Rings or waves mood.
• Alpha: This allows you to modify the alpha color level.
• Vertical and horizontal texture.
• Texture filtering: linear/nearest.
• Texture horizontal offset.
• Texture vertical offset.

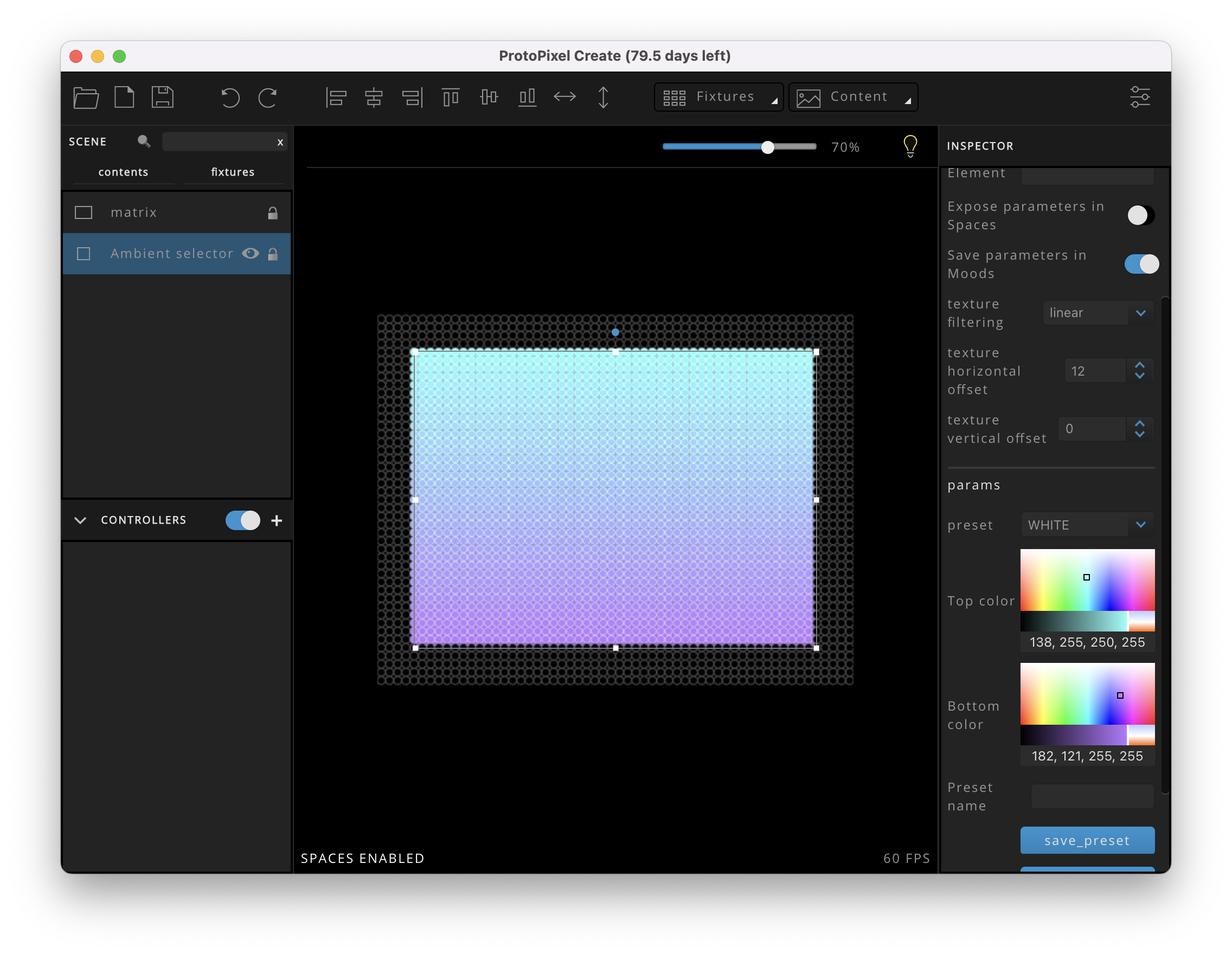

Ambient selector

Description: This content allows mixing two layers of color in the same environment.

Features:

• Top color: It allows you to modify the top color.
• Bottom color: It allows you to modify the bottom color.
• Present name: It allows you to save your preset or, delete it.
• Preset: on / off.
• Texture filtering: Linear/nearest.
• Texture horizontal offset.
• Texture vertical offset.
• Alpha: This allows you to modify the alpha color level.

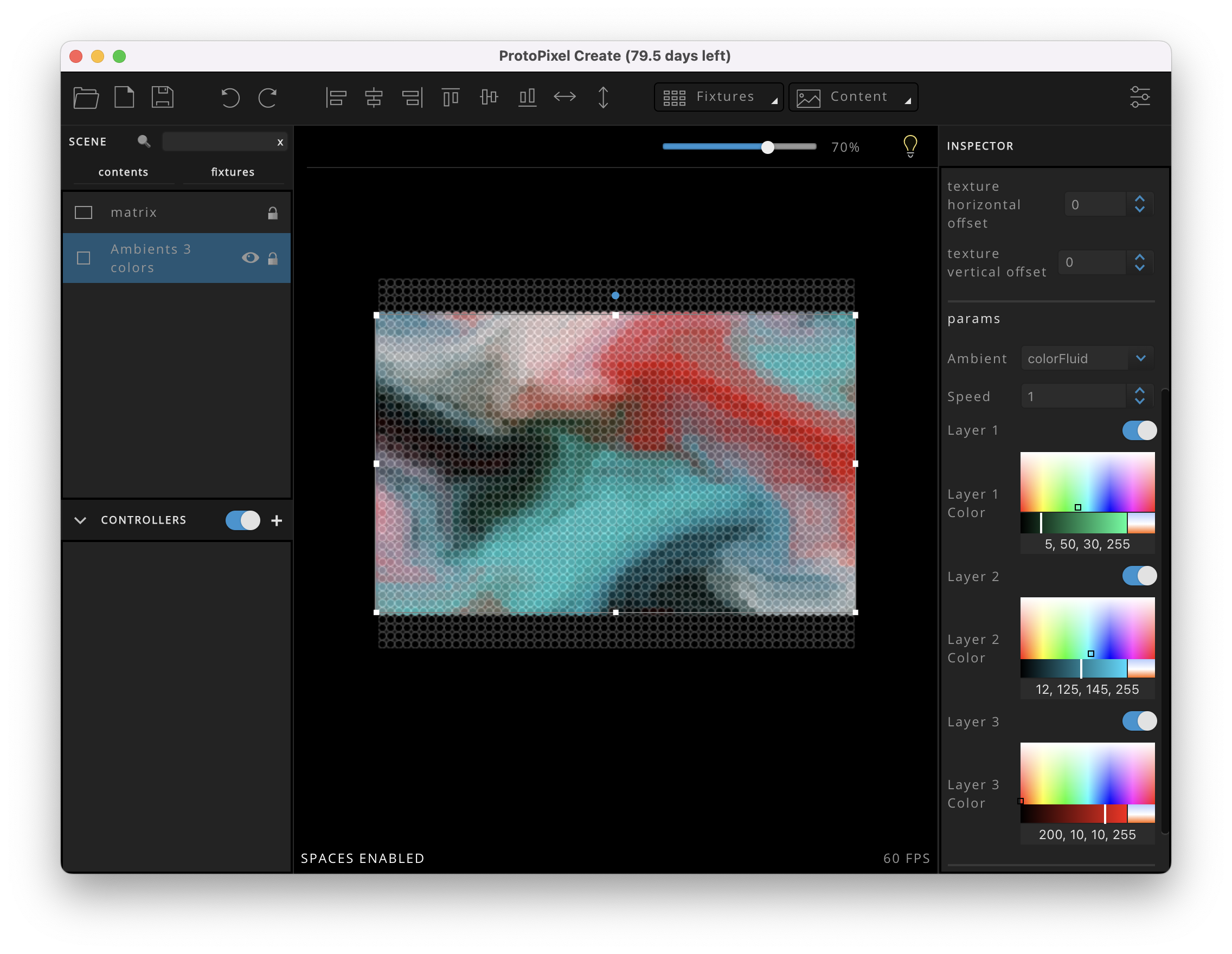

Ambients 3 colors

Description: This content displays two multi-colored textures: ColorFluid and TriPlasma.

Features:

• Texture filtering: Linear/nearest.
• Texture horizontal offset.
• Texture vertical offset.
• Alpha: This allows you to modify the alpha color level.
• Ambient: Select colorFluid or triPlasma.
• Speed: Allows you to modify the speed of the content.
• Layer color: It allows you to modify the three color composition layers separately. Also, each one can be disabled separately.
• Reload: This allows you to reload the content while keeping the modifications you have previously applied.

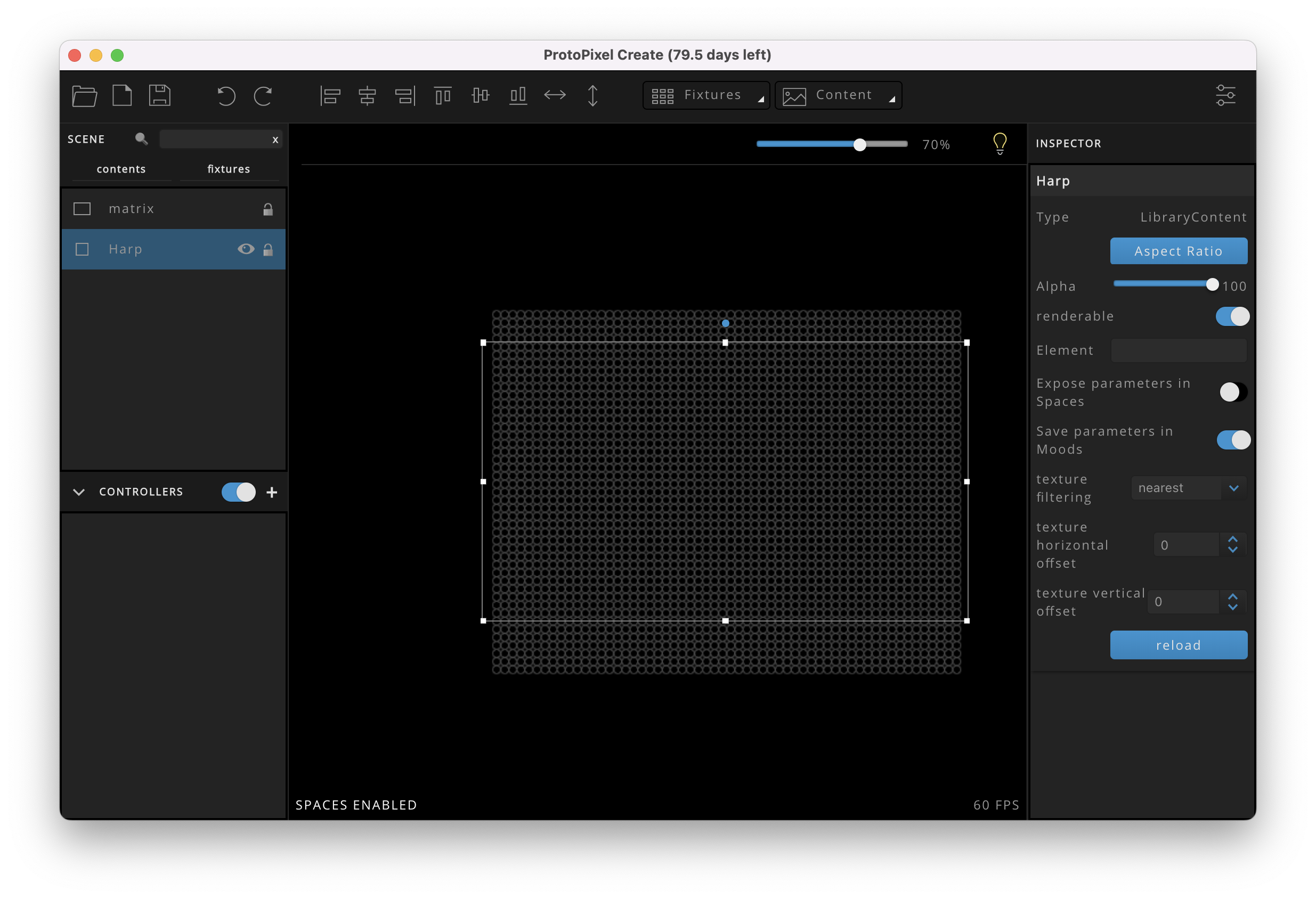

Harp

Description: This interactive content allows you to launch live color content through the web app.
From the Mapping Tool menu bar, select Project, Open Web app, and, select content harp: you will see that a window opens that is the workspace where you can interact. Draw a path over the surface with your mouse or trace the space with your finger to color the installation live.

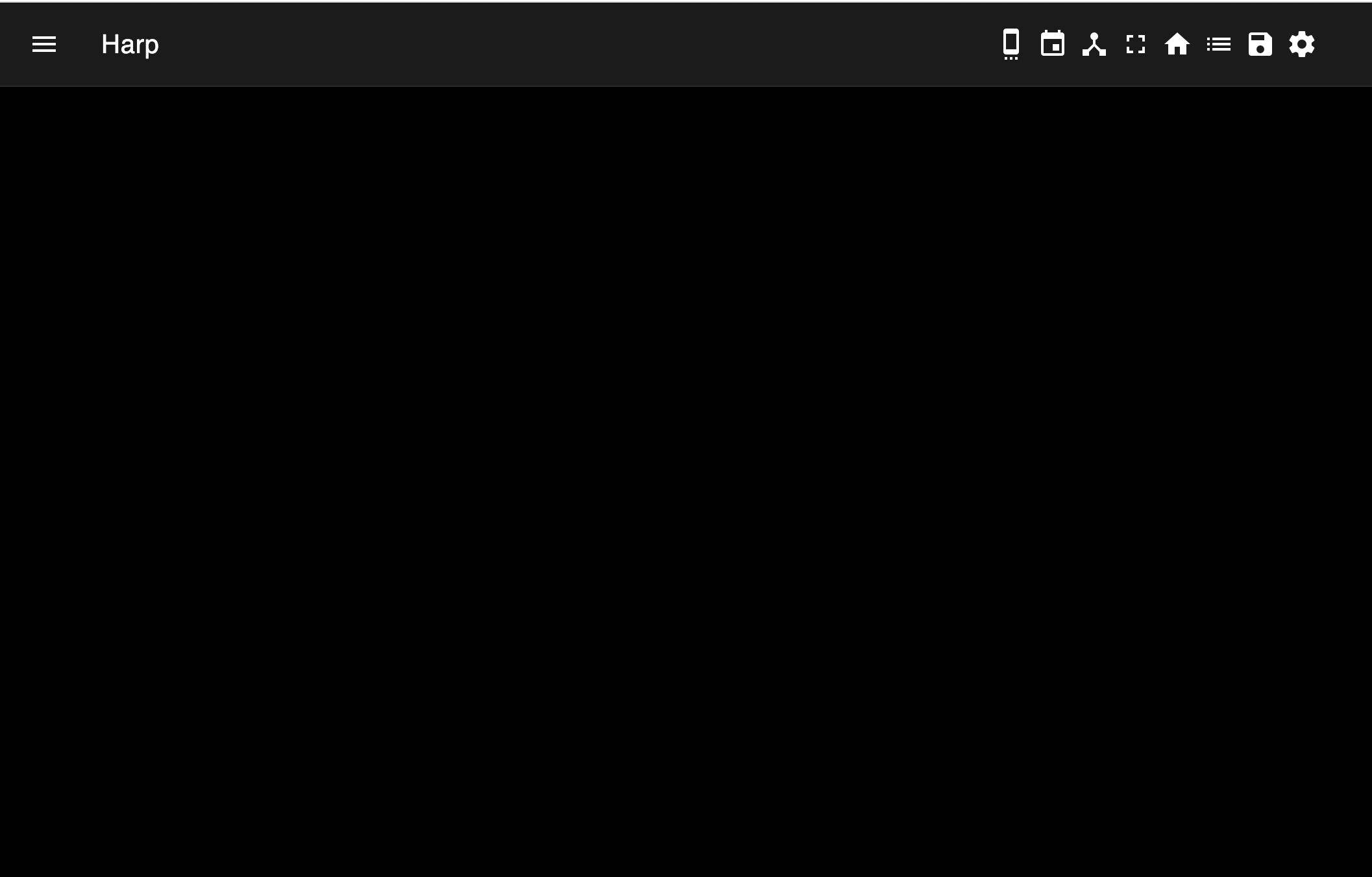

View of the web app interface

Features:

• Texture filtering: Linear/nearest.
• Texture horizontal offset.
• Texture vertical offset.

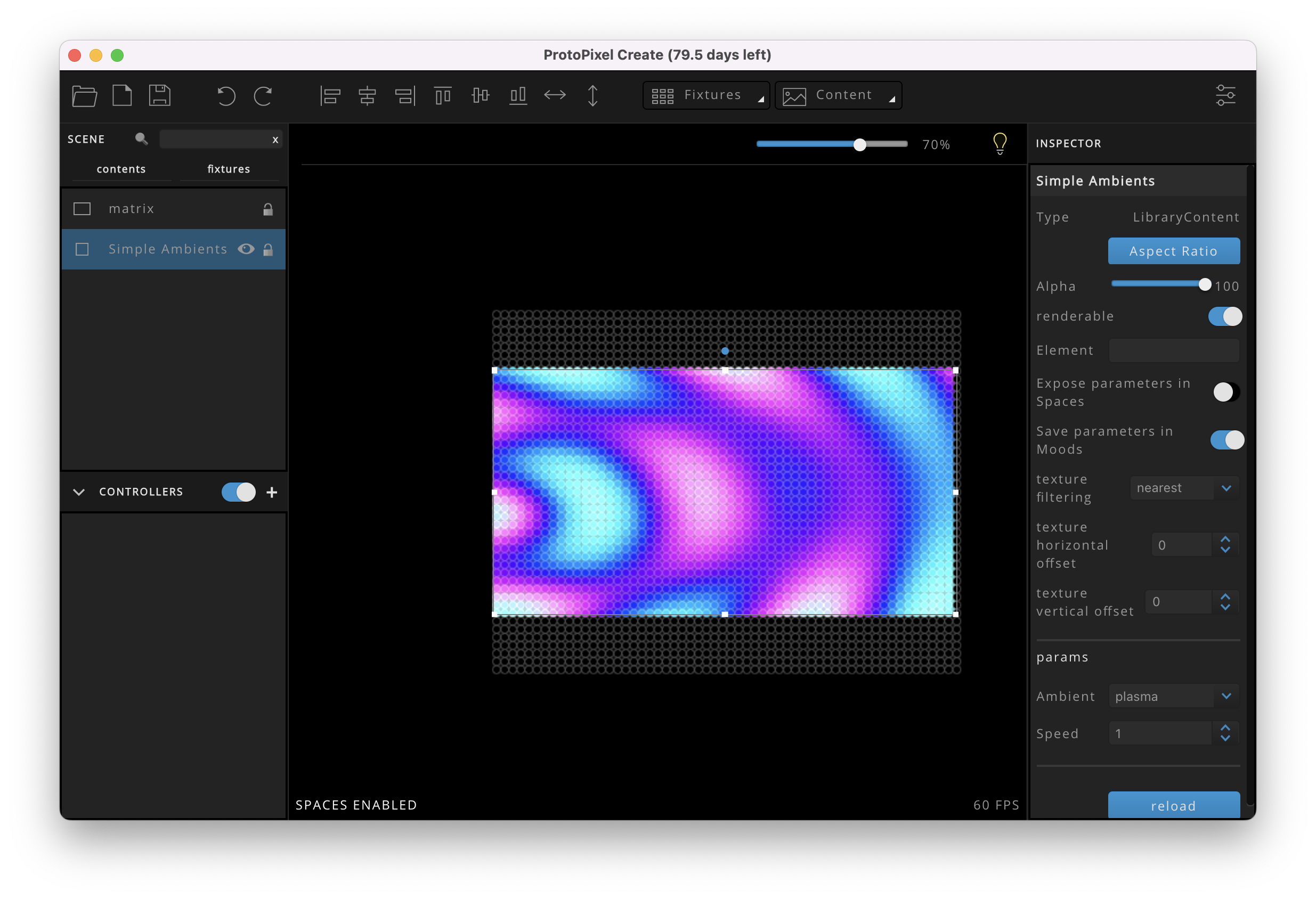

Simple Ambients

Description: This content displays multi-colored textures: Swirl, Circles, Water, Plasma, or Colormix.

Features:

• Texture filtering: Linear/nearest.
• Texture horizontal offset.
• Texture vertical offset.
• Alpha: This allows you to modify the alpha color level.
• Ambient: Select Swirl, Circles, Water, Plasma, or Colormix.
• Speed: Allows you to modify the speed of the content.

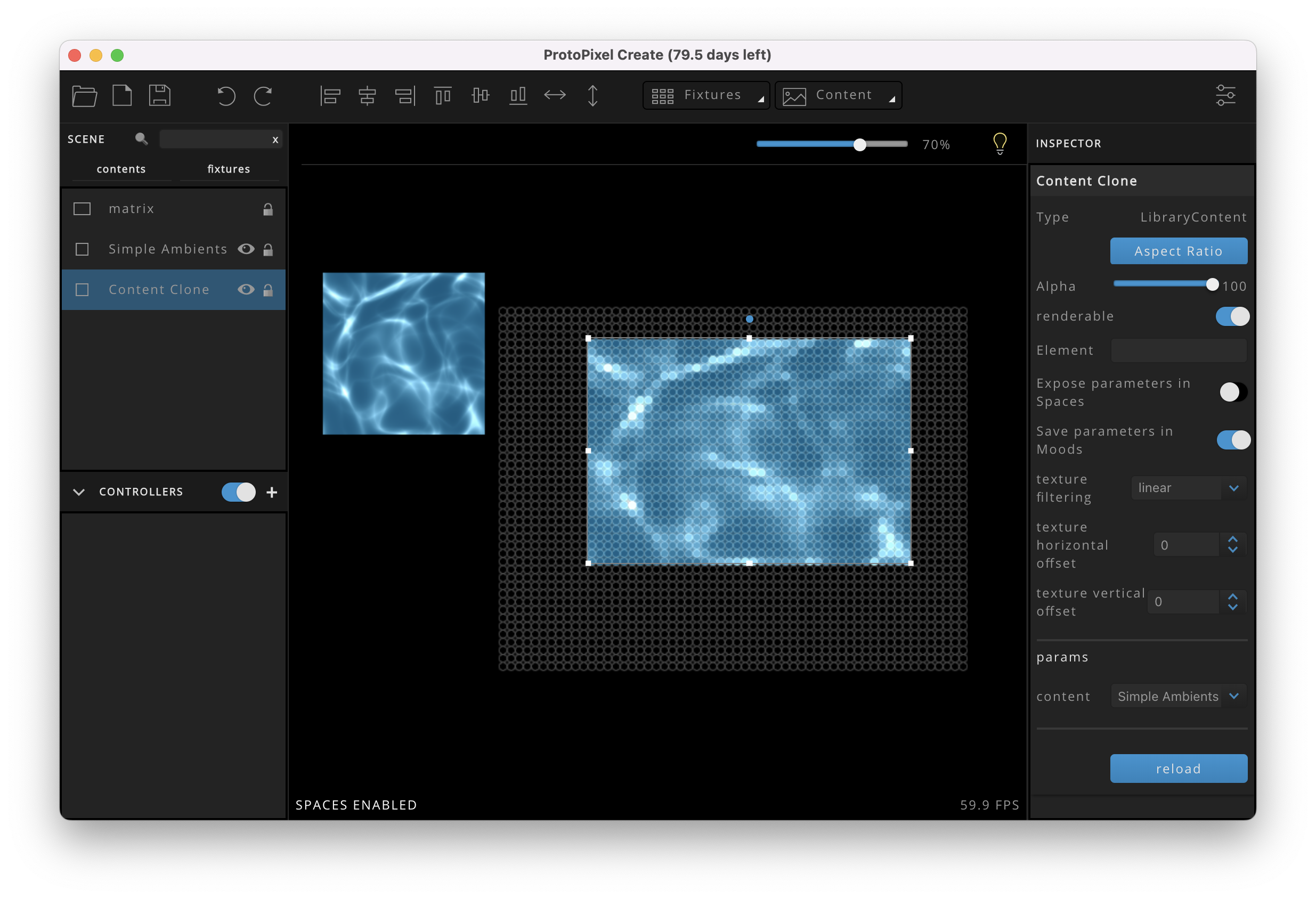

Content Clone

Description: This content allows you to clone your pre-designed content and apply it to different elements and zones. The content clone helps to synchronize contents like videos over fixtures that you do not want to see delays of the same content.

One of the good ways to use content clone, specifically with matrix fixtures is in the next form:

• Choose the different content or contents you want to synchronize, they will be the master.
• Leave those outside the fixtures.
• Select Content Clone as content as many fixtures you have.
• In content Clone Parameters select the master or content you want to map.
• Please make sure Content Clone is the first in the levels of content.

Features:

• Content: You can select the specific content you can clone.
• Texture filtering: Linear/nearest.
• Texture horizontal offset.
• Texture vertical offset.
• Alpha: This allows you to modify the alpha color level.

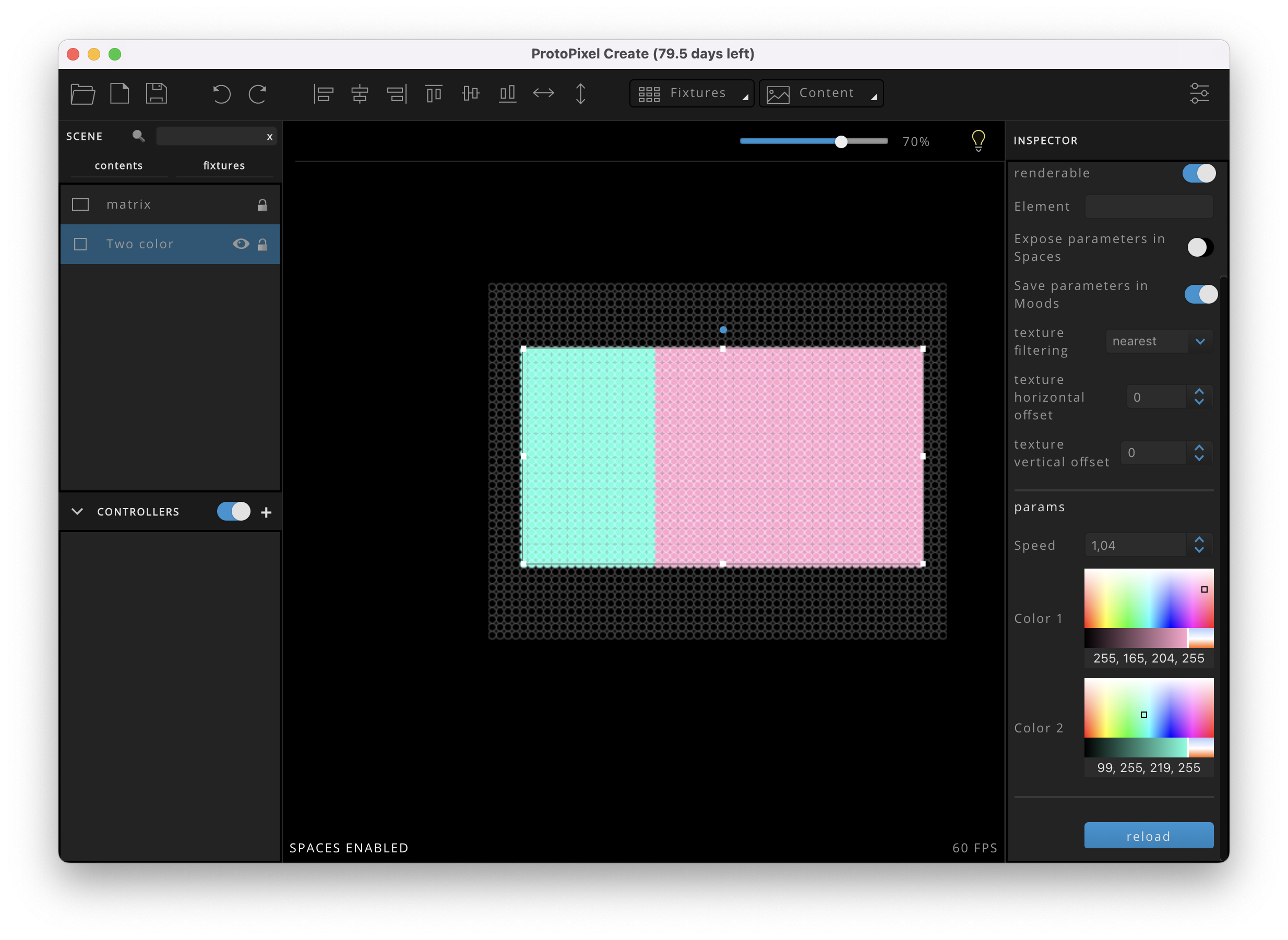

Two Colors

Description: This content allows you to create dynamic content from a layer of two colors that are exchanged from one to another where you can select the speed of movement and choose each color independently.

• Alpha: This allows you to modify the alpha color level.
• Texture filtering: Linear/nearest.
• Texture horizontal offset.
• Texture vertical offset.
• Speed: Allows you to modify the speed of the content.
• Color 1 and color 2:  It allows you to modify the two color composition layers separately.

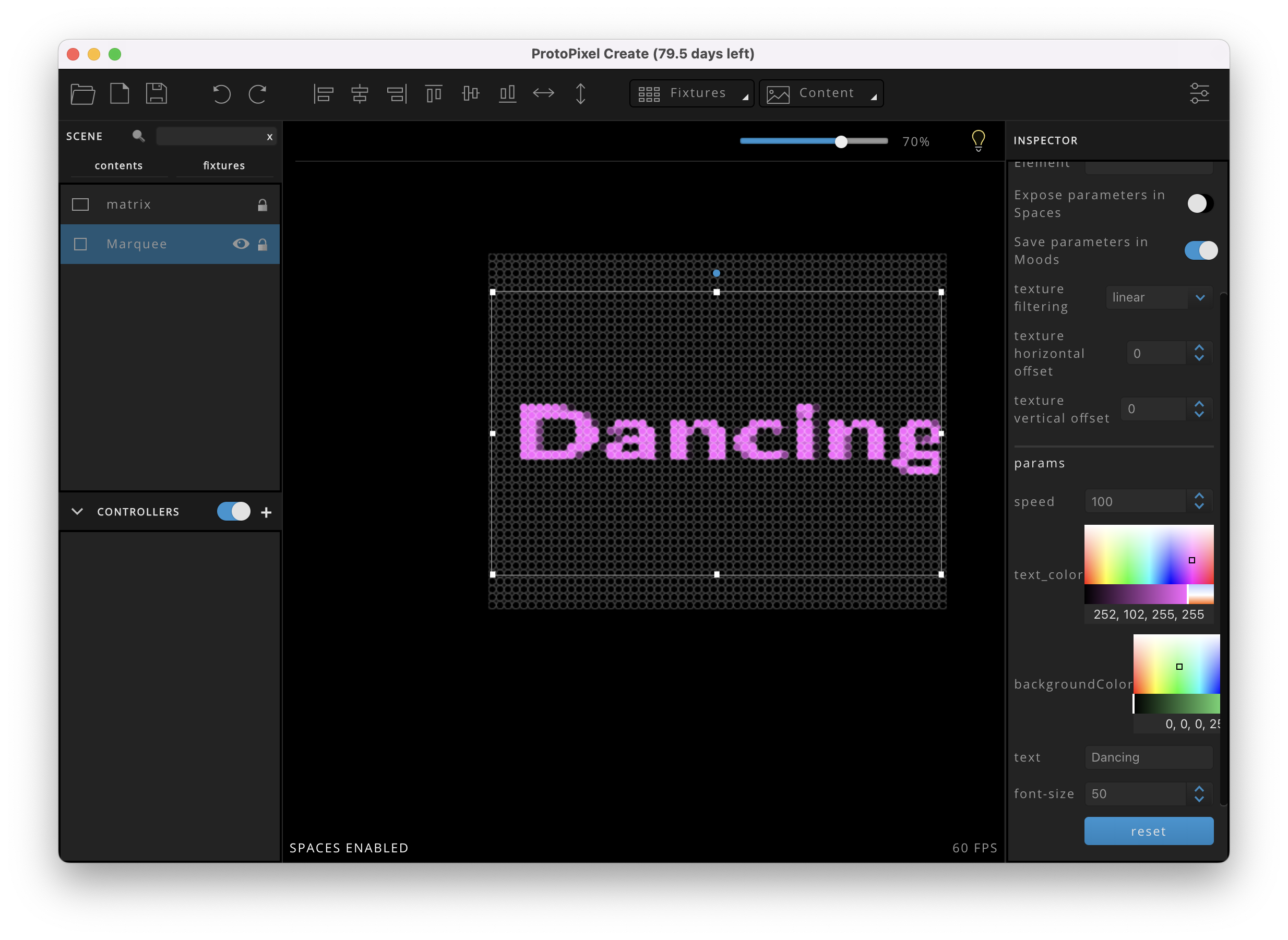

Marquee

Description: This content enables the text display on the luminaires, enabling the digital installation to share a written message with the observers. All messages can be edited through the Spaces app, in addition, the text color, background, and sliding speed can be edited.

Features:

• Alpha: This allows you to modify the alpha color level.
• Texture filtering: Linear/nearest.
• Texture horizontal offset.
• Texture vertical offset.
• Speed: The speed at which the message slides from right to left.
• Text color: Select the text color from the palette.
• Background color: Select the background color from the palette.
• Text: Write a message.
• Font size: Adjust to the desired size.

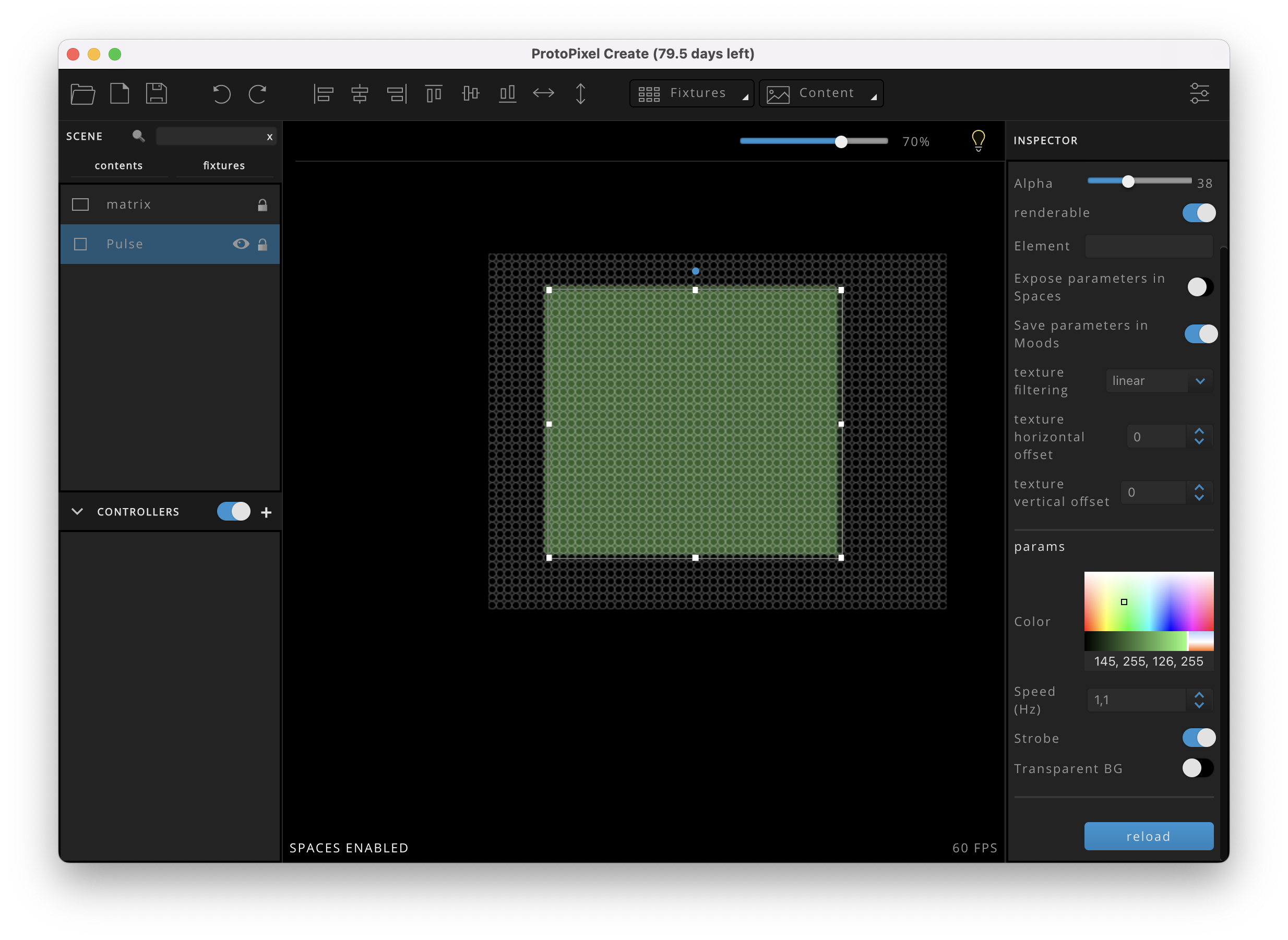

Pulse

Description: This content allows you to create dynamic audio-reactive content with solid colors. Can be integrated with a microphone from a computer or other external source.

Features:

• Alpha: This allows you to modify the alpha color level.
• Texture filtering: Linear/nearest.
• Texture horizontal offset.
• Texture vertical offset.
• Color: selection palette.
• Speed (Hz): Set up the reaction speed.
• Strobe: on/off.
• Transparent BG: on/off.

Ramps

Description: This content allows you to create dynamic content from animated linear content: imersiveRampAnimation or rampAnimation. You can change the direction of movement and the size of the pattern.

Features:

• Alpha: This allows you to modify the alpha color level.
• Texture filtering: Linear/nearest.
• Texture horizontal offset.
• Texture vertical offset.
• Ambient: select imersiveRampAnimation or rampAnimation.
• Speed: Allows you to modify the speed of the content.
• Num gradients: adjust the amount of content.
• Backward and forward.
• Color: Select the color from the palette.

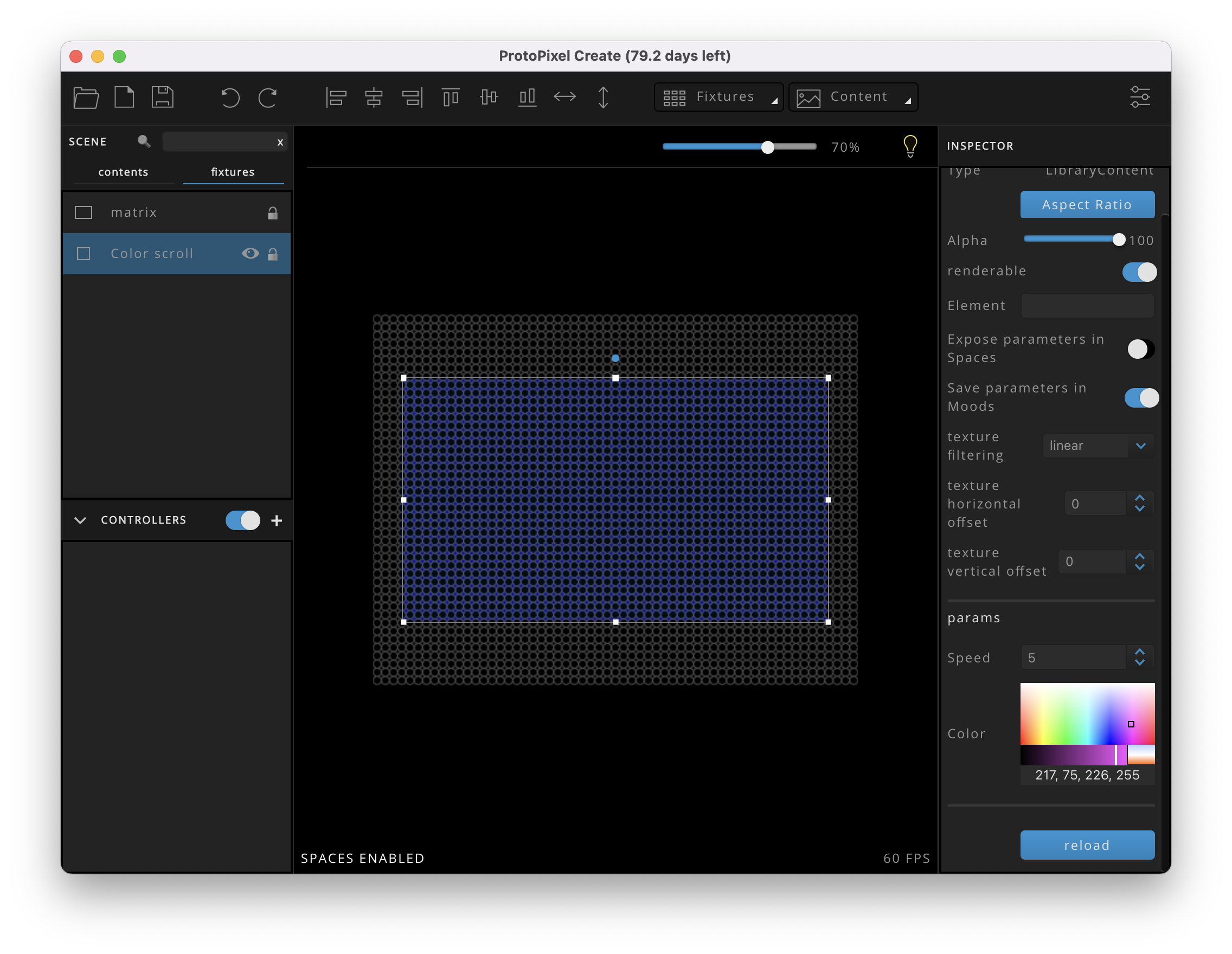

Color Scroll

Description: This is a dynamic content sequence passing from one solid color to another, gradually passing through all the colors in the palette. You can choose the start and end color of the sequence, the speed, the temperature, and the amount of blacks and whites.

Features:

• Alpha: This allows you to modify the alpha color level.
• Texture filtering: Linear/nearest.
• Texture horizontal offset.
• Texture vertical offset.
• Color: Select the color from the palette, the temperature, and the amount of blacks and whites
• Speed: Allows you to modify the speed of the content.

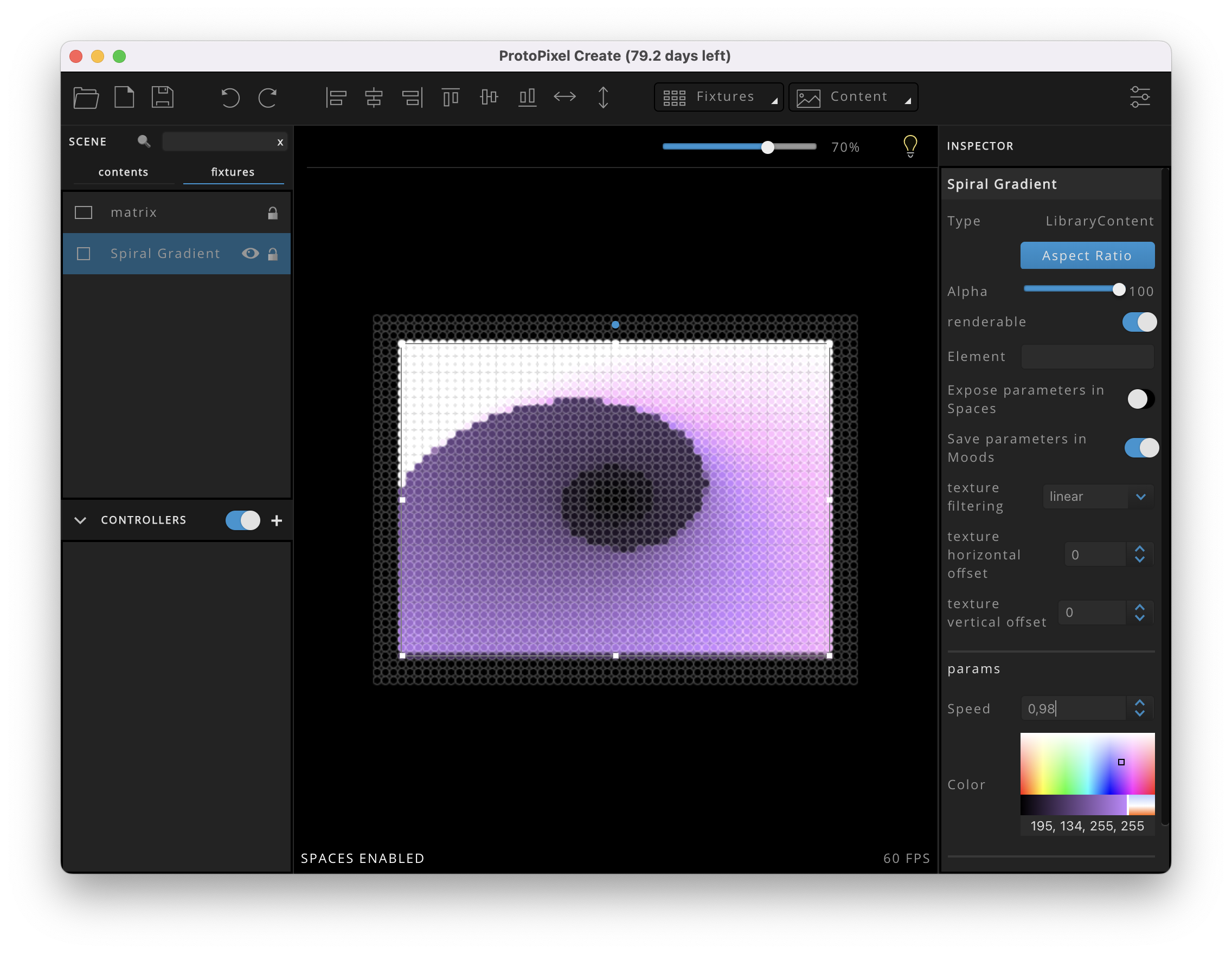

Spiral Gradients

Description:  This content allows you to create dynamic content from animated circular content, you can change the speed, color, brightness, and amount of black and white.

Features:

• Alpha: This allows you to modify the alpha color level.
• Texture filtering: Linear/nearest.
• Texture horizontal offset.
• Texture vertical offset.
• Color: Select the color from the palette, the temperature, and the amount of blacks and whites.
• Speed: Allows you to modify the speed of the content.

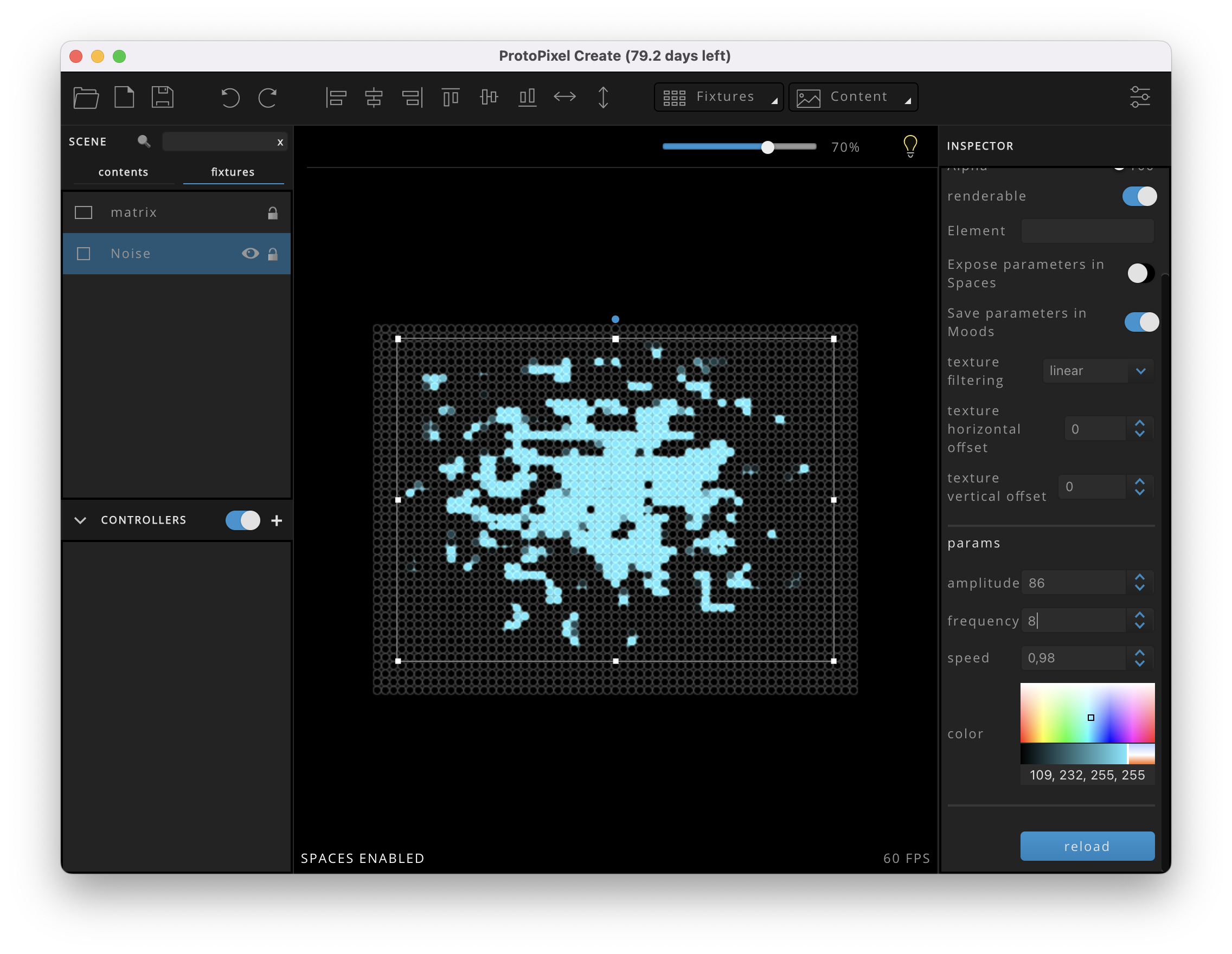

Noise

Description: This content allows you to create dynamic content from a smudge-shaped preset. You can modify its shape, speed, and color.

Features:

• Alpha: This allows you to modify the alpha color level.
• Texture filtering: Linear/nearest.
• Texture horizontal offset.
• Texture vertical offset.
• Amplitude: Modulates the dimension of the content within the space selected for it.
• Frequency: Regulates the number of fractions that has the form.
• Speed: Allows you to modify the speed of the content.

• Color: Select the color from the palette, the temperature, and the amount of blacks and whites.

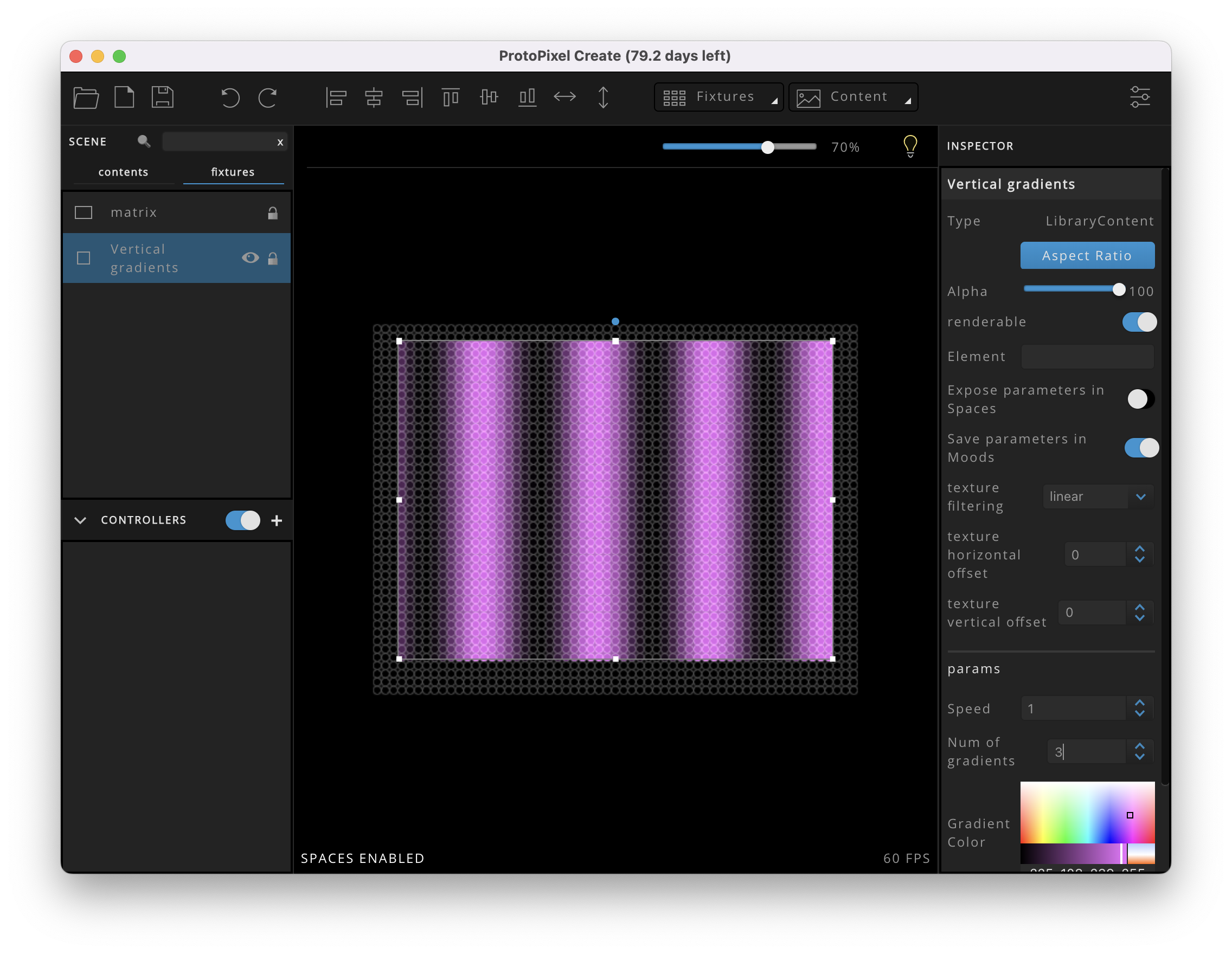

Vertical gradients

Description:  This content allows you to create dynamic content from animated linear content. You can change the number of lines, which affects the amount, you can also change the speed, color, brightness, and amount of black and white.

Features:

• Alpha: This allows you to modify the alpha color level.
• Texture filtering: Linear/nearest.
• Texture horizontal offset.
• Texture vertical offset.
• Speed: Allows you to modify the speed of the content.
• Number of gradients: Select the amount, which will affect the thickness of the line.
• Color: Select the color from the palette, the temperature, and the amount of blacks and whites.

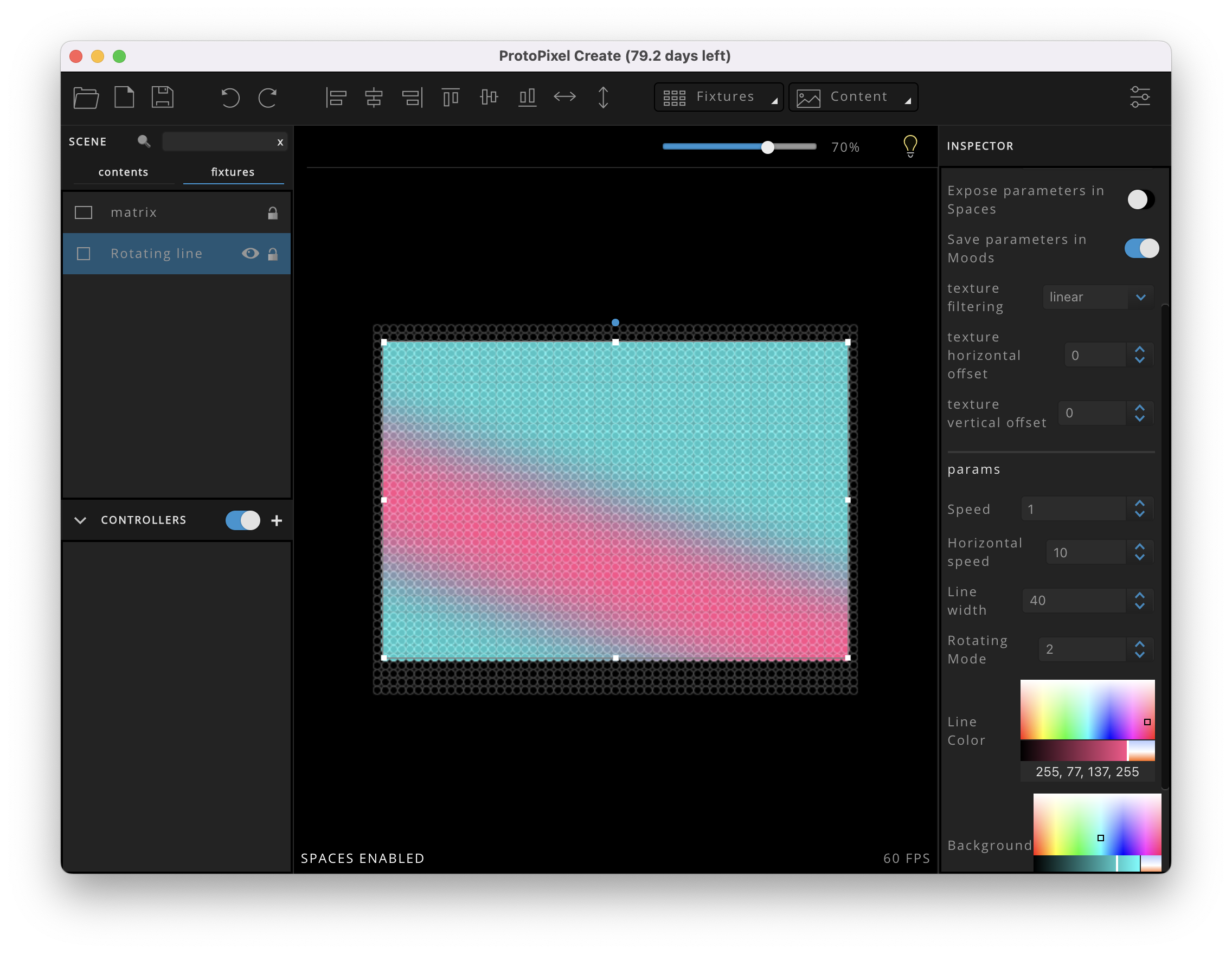

Rotating Line

Description: This content allows you to create dynamic content from animated linear content. In addition to being able to change the speed, the color of the line, and the background, you can set how the content zooms in and out, creating an effect of depth with the rotation mode.

Features:

• Alpha: This allows you to modify the alpha color level.
• Texture filtering: Linear/nearest.
• Texture horizontal offset.
• Texture vertical offset.
• Speed: Allows you to modify the speed of the content.
• Horizontal Speed: Allows to set the horizontal speed
• Line Width: Select line thickness
• Rotating Mode: Allows you to select different rotation modes.
• Line Color: Allows you to change the color of the moving line.
• Background: Allows you to change the background color.

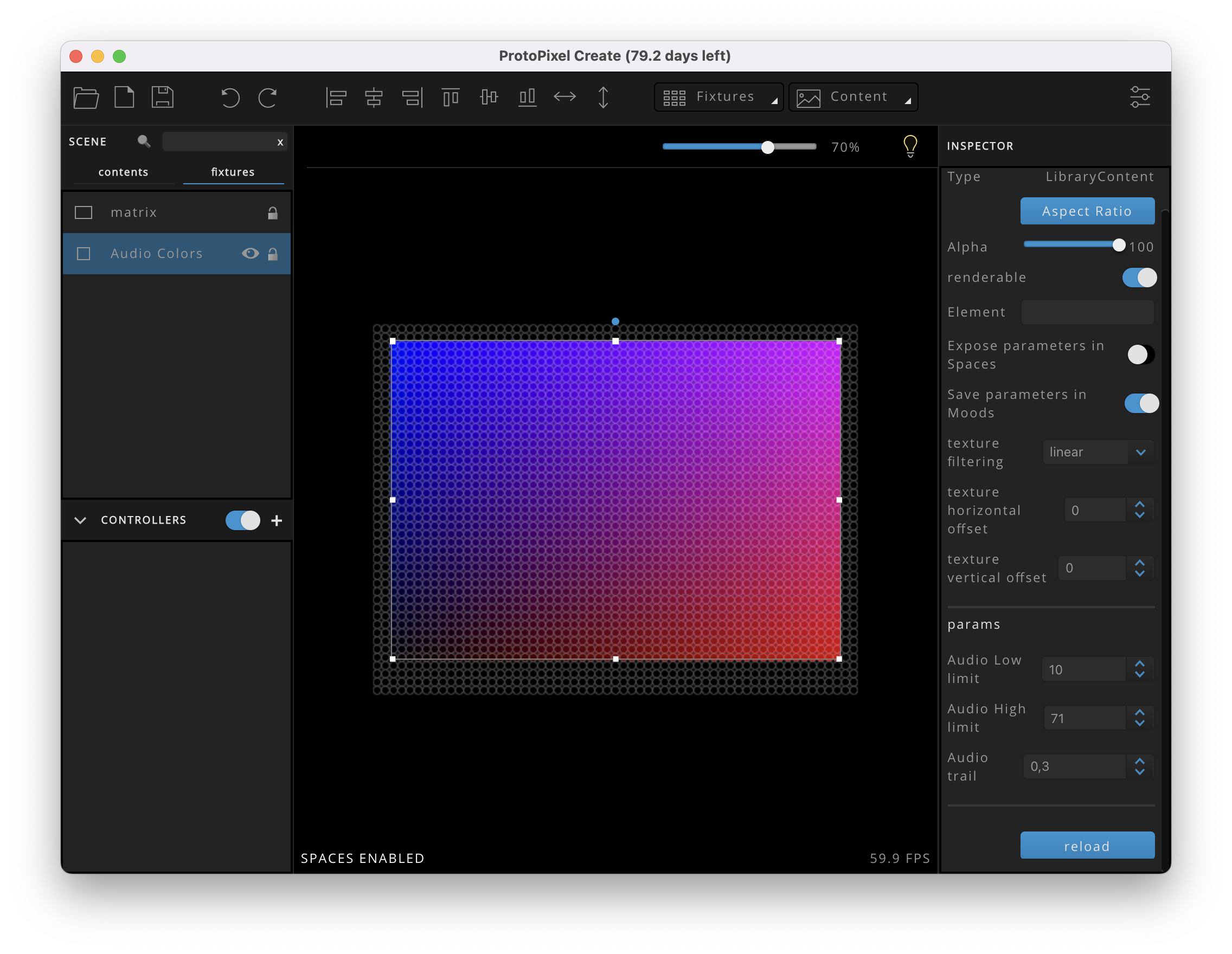

Audio Colors

Description: This content allows you to create dynamic audio-reactive content from a layer of color that fades from blue to orange, relating low sounds to cool colors and high sounds to warm colors.

Features:

• Alpha: This allows you to modify the alpha color level.
• Texture filtering: Linear/nearest.
• Texture horizontal offset.
• Texture vertical offset.
• Audio Low limit.
• Audio High limit.
• Audio trail limit.

Bias Lighting

Description: This interactive content allows you to launch live color content through the web app. This functionality replicates previously added content, without modifying its master. From the inspector parameters, select the content you want to replicate.

Features:

• Alpha: This allows you to modify the alpha color level.
• Texture filtering: Linear/nearest.
• Texture horizontal offset.
• Texture vertical offset.
• Content: select the content master
• Side: from a fade to black, sets from where the content starts to move: Unset, Top, Bottom, Right, Low.
• Smoothness: Allows you to adjust the smoothing.
• Resolution: Change the definition of the form.
• Fade: Changes the color dilution level.
• Temporal Smoothing: Change smoothing speed.

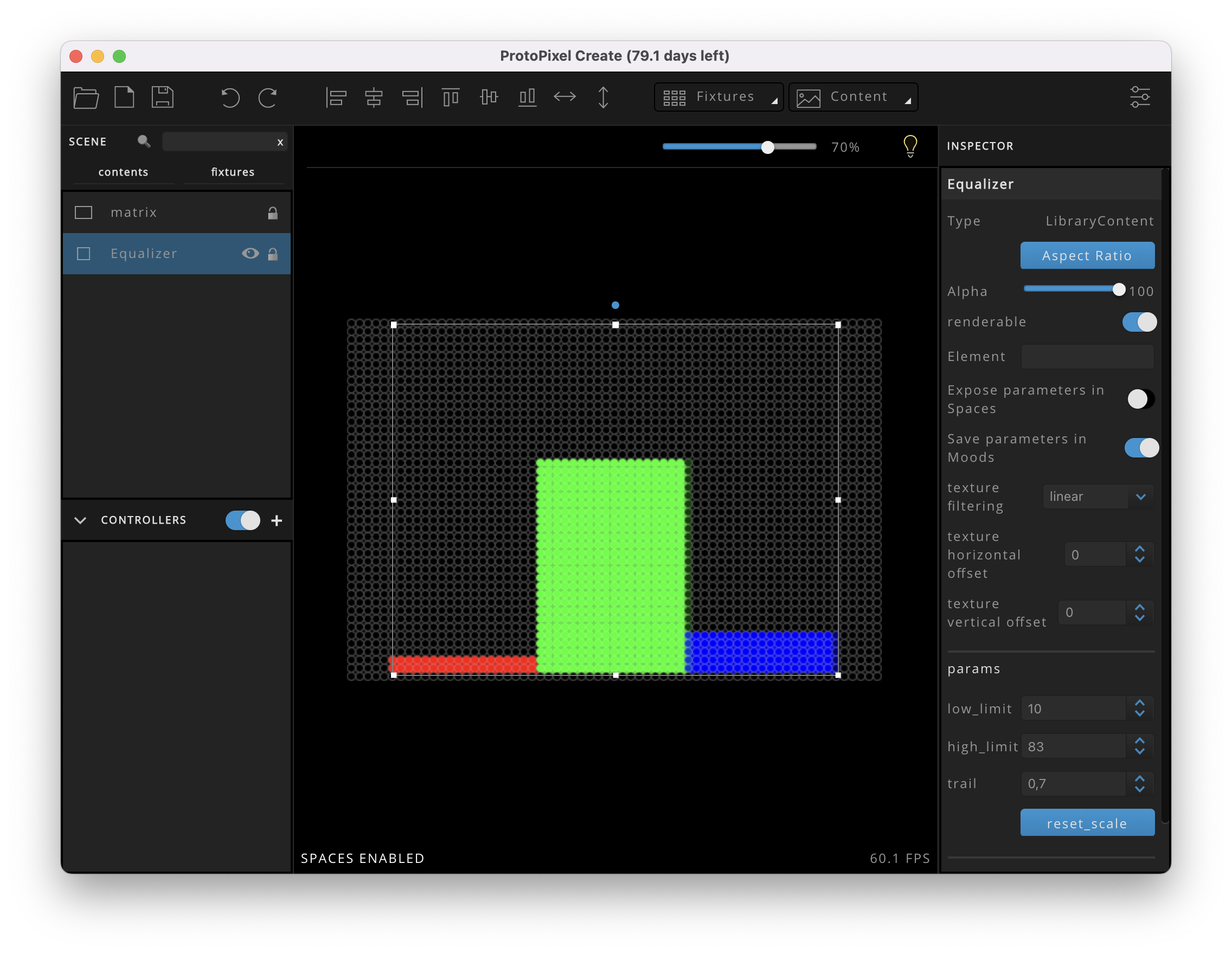

Equalizer

Description: This content allows you to create dynamic content from reactive audio animations that simulate an equalizer. The shape of three rising bars (R, G, B) will be modified by changing the volume limit parameters.

Features:

• Alpha: This allows you to modify the alpha color level.
• Texture filtering: Linear/nearest.
• Texture horizontal offset.
• Texture vertical offset.
• Low limit.
• High limit.
• Trail.

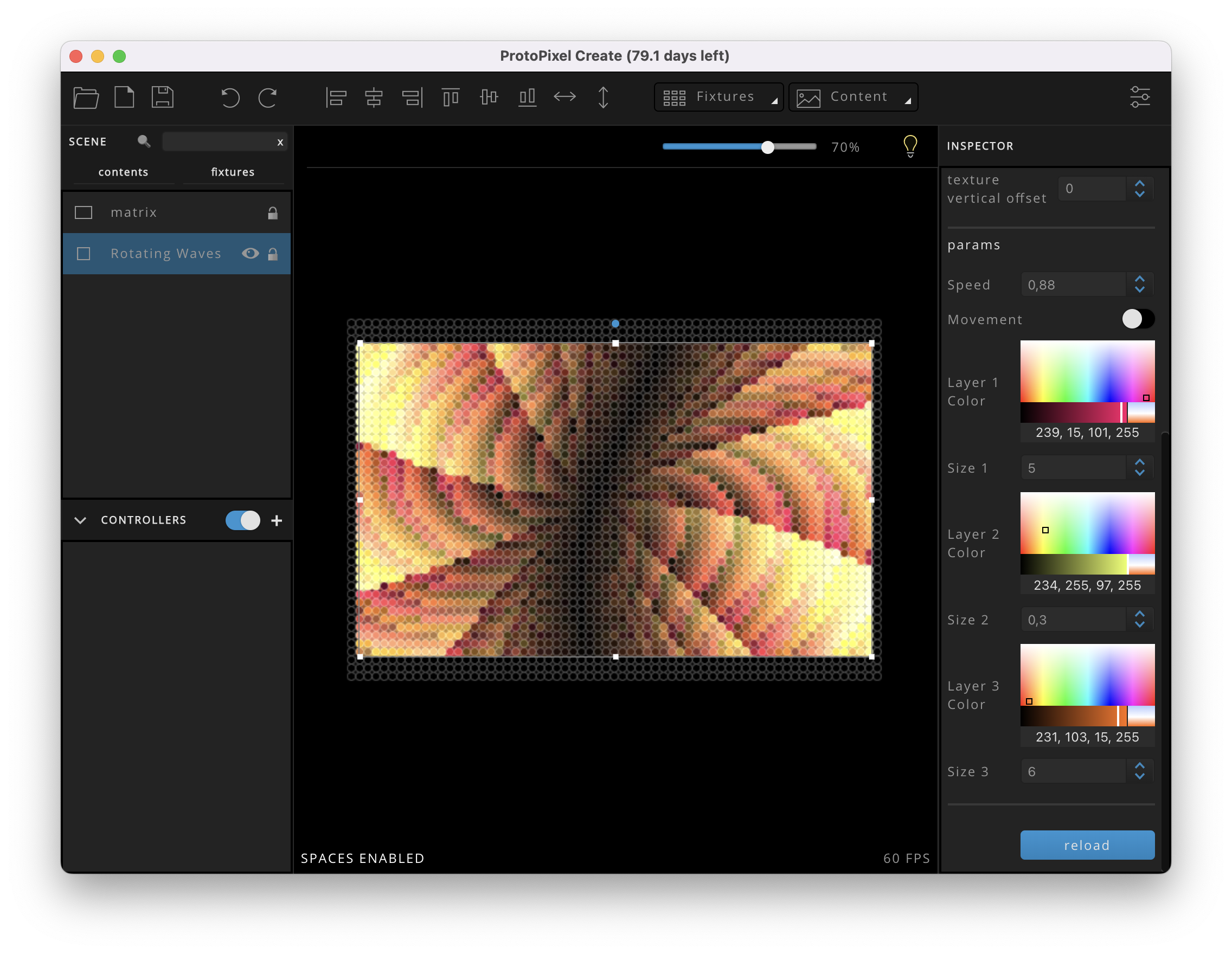

Rotating Lines

Description: This content allows you to create dynamic content from animated spiral content. You can change its three color and size layers independently.

Features:

• Alpha: This allows you to modify the alpha color level.
• Texture filtering: Linear/nearest.
• Texture horizontal offset.
• Texture vertical offset.
• Speed: Select the spiral rotation speed.
• Movement: Select the on-off button to make the content layer move in different directions off-center.
• Layer 1 Color: Select the color from the palette, temperature, and amount of blacks and whites.
• Size 1: Set up the size of line 1
• Layer 2 Color: Select the color from the palette, temperature, and amount of blacks and whites.
• Size 2: Set up the size of line 2
• Layer 3 Color: Select the color from the palette, temperature, and amount of blacks and whites.
• Size 3: Set up the size of line 3

Two colors gradient

Description: This content allows you to create dynamic content from a layer of two colors that merge from one to another where you can select the speed of movement and choose each color independently. This content can be animated or static.

Features:

• Alpha: This allows you to modify the alpha color level.
• Texture filtering: Linear/nearest.
• Texture horizontal offset.
• Texture vertical offset.
• Speed: Select the speed of change from one color to another.
• Animation mode: The on-off button allows to activate and deactivate of the dynamic mode.
• Color 1: Select palette color, temperature, and amount of blacks and whites for layer 2.
• Color 2: Select palette color, temperature, and amount of blacks and whites for layer 2.

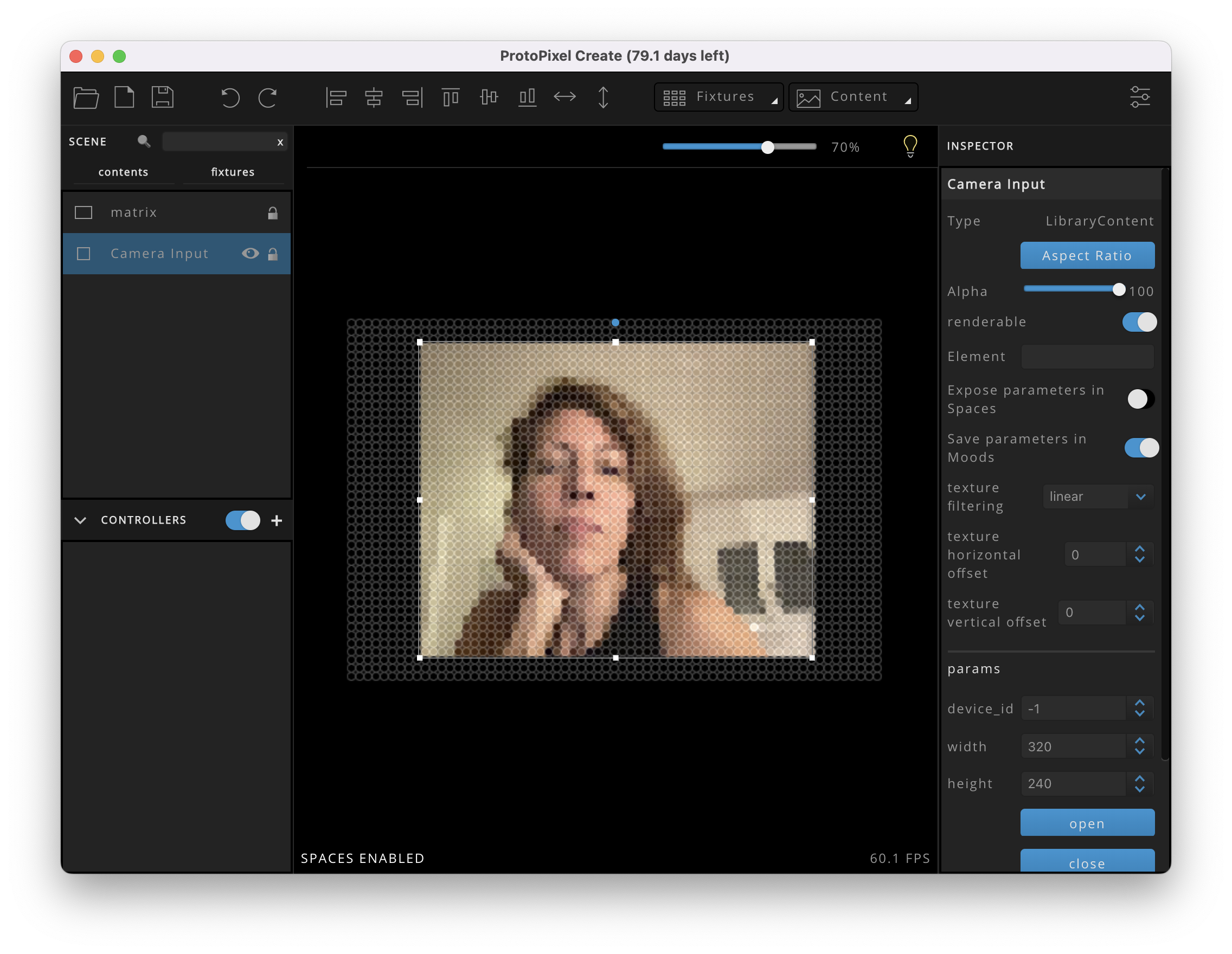

Content Camera

Description: Allows you to create interactive content through an external camera or using your computer's camera. From the parameters select the device and the resolution.

Features:

• Alpha: This allows you to modify the alpha color level.
• Texture filtering: Linear/nearest.
• Texture horizontal offset.
• Texture vertical offset.
• Device_id: Select the location of the device
• Width: Adjust the resolution to achieve accuracy or distortion.
• Height: Adjust the resolution to achieve accuracy or distortion.

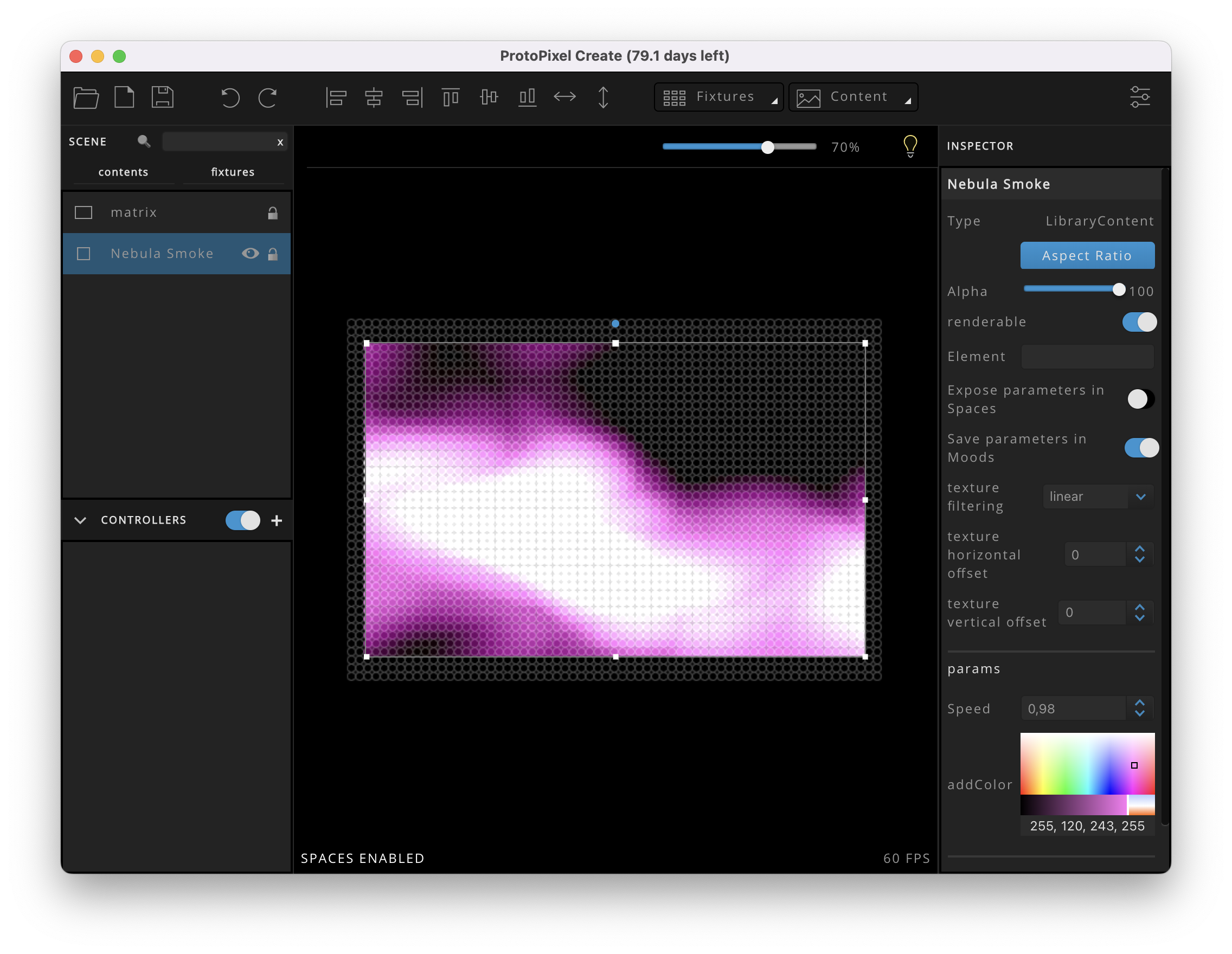

Nebula Smoke

Description: This content allows you to create dynamic content from nebula-shaped content. You can modify the color and speed.

Features:

• Alpha: This allows you to modify the alpha color level.
• Texture filtering: Linear/nearest.
• Texture horizontal offset.
• Texture vertical offset.
• Speed: Select the speed of the content.
• Add Color: Select the main color from the palette.

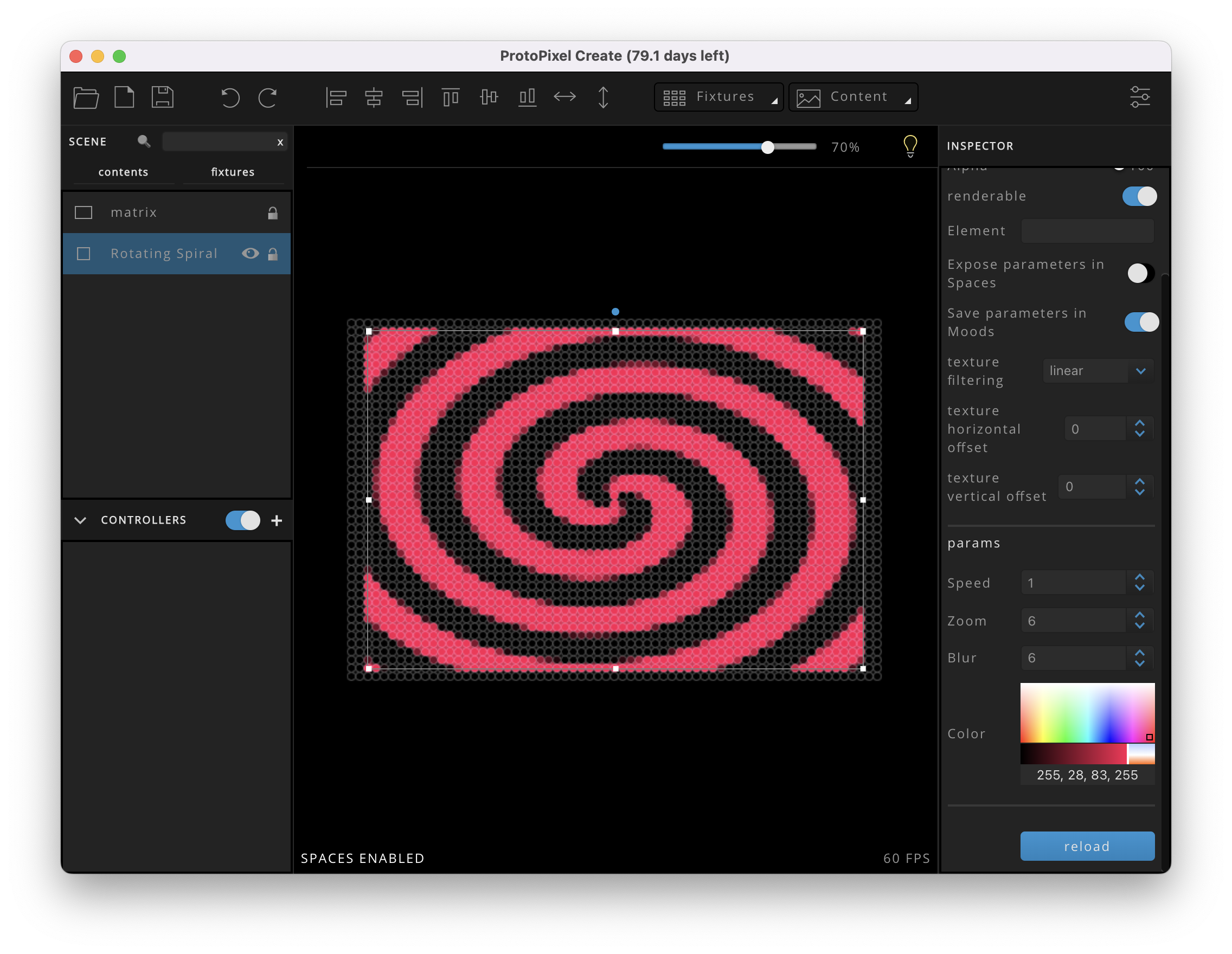

Rotating Spiral

Description: This content allows you to create dynamic content from animated spiral content.

Features:

• Alpha: This allows you to modify the alpha color level.
• Texture filtering: Linear/nearest.
• Texture horizontal offset.
• Texture vertical offset.
• Speed: Select the speed of content.
• Zoom: Allows you to adjust the size of the spiral
• Blur: Blur the edges of the spiral
• Color: Select the main color from the palette.

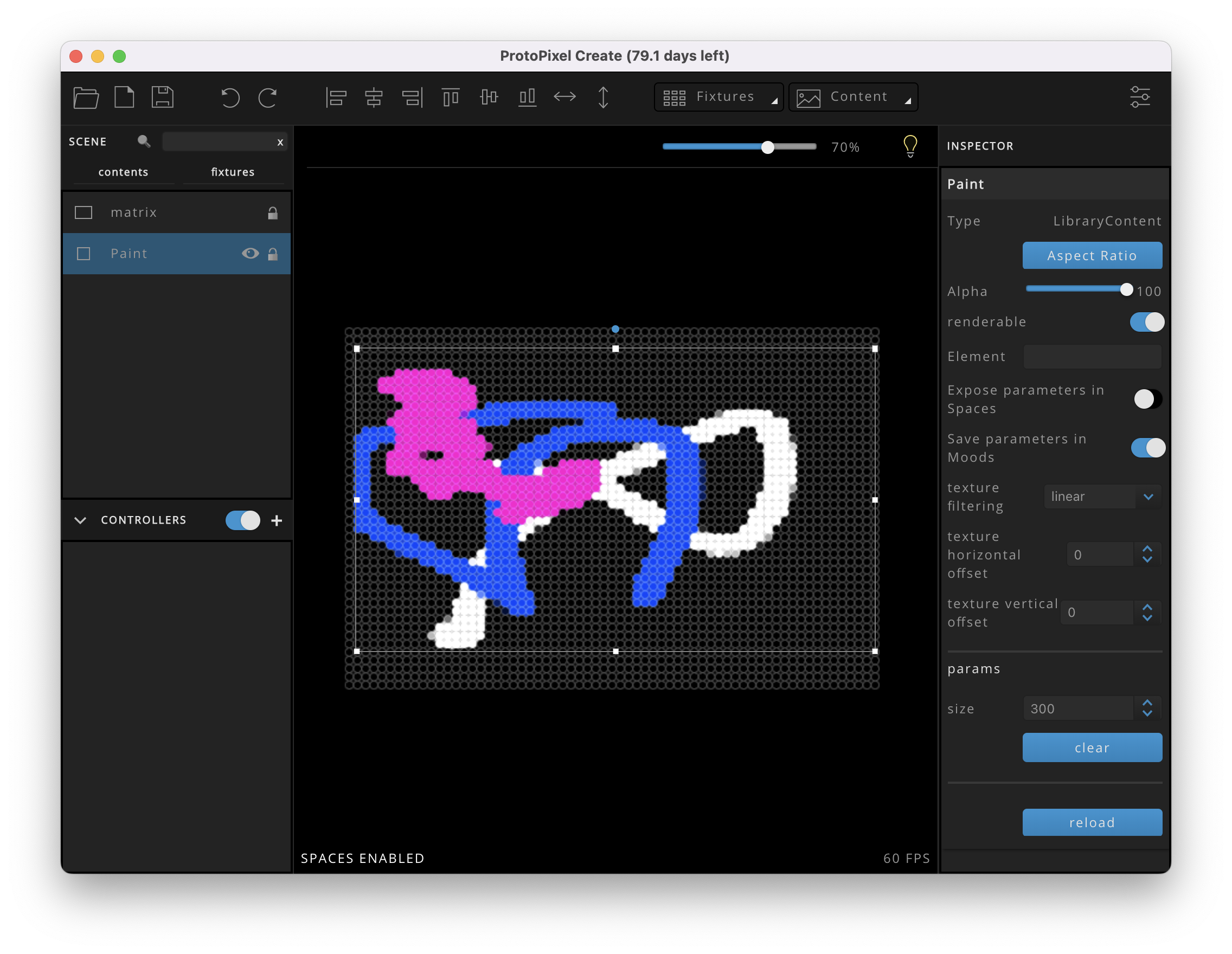

Paint

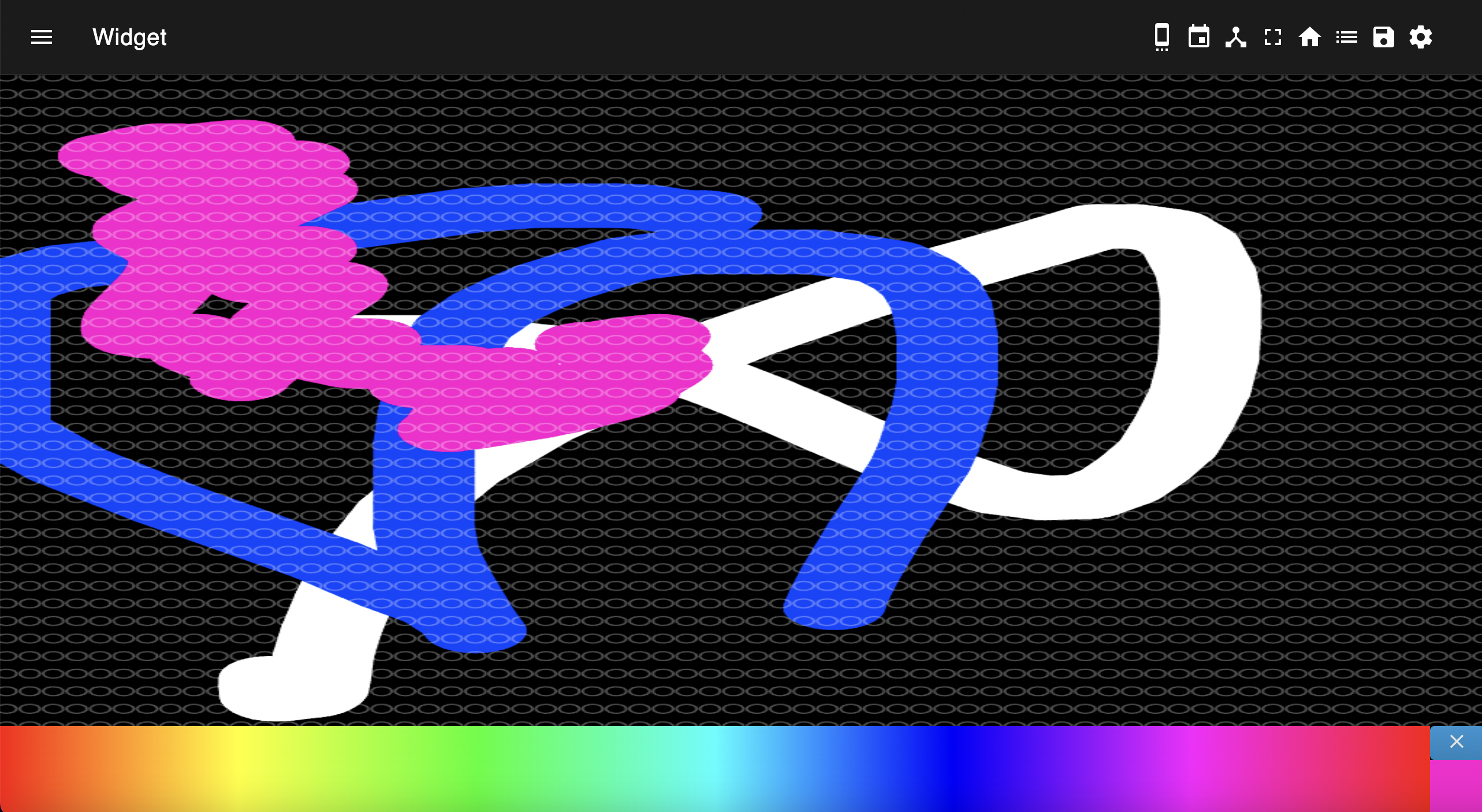

Description: This content allows the end user to draw throughout all the luminaires, allowing real-time interaction with all mapped objects. The interaction can easily be done with mobile devices and the Spaces app, bringing a completely new experience to the users.

This interactive content allows you to launch live color content through the web app.
Using your computer: From the Mapping Tool menu bar, select Project, Open Web app, and, select content: use the mouse to draw on the work area or your finger if you are using a touchpad.

Web application interface view

Features:

• Alpha: This allows you to modify the alpha color level.
• Texture filtering: Linear/nearest.
• Texture horizontal offset.
• Texture vertical offset.
• Size: Adjust stroke size.
