Sidebar Left
As you use the software, you will see two sidebars: one on the right and one on the left.
The left sidebar is always visible and displays the following Features:
Elements
Here you can see the list of elements you have on your installation, divided by Spaces and by placed and unplaced elements.
You can also view all the spaces you have created. Spaces group elements and allow you to send context control commands, such as moods and CLC.
On element’s list, you’ll be able to see if any of the Spaces have an enabled CLC.
Discovery
On the discovery menu you will be able to discover all the DALI gateways and elements included in your installation.
Scheduler
Here’s the menu item to access to the Scheduler. You can see all the information of this feature on the Scheduler Section.
Sidebar Right
Sidebar right will appear when a selected item has properties to show, such as moods (A Space Property). Right sidebar can display following Features:
Properties
All element, gateway or Space will show a summary of it’s capabilities or properties.
Moods
You can see all the information of this feature on the Moods section
Moods feature will be visible when you are on a Space context (you’ll be on the Space context if you selected a Space on the Element’s list or one of it’s elements on the list, not on the floorplan).
CLC (Constant Light Control)
You can see all the information of this feature on the CLC section
CLC feature will be visible when you are on a Space context (you’ll be on the Space context if you selected a Space on the Element’s list or one of it’s elements on the list, not on the floorplan).
Canvas
Every tab is a different floor plan. And the elements included on the elements’ list are placed on the Floor plan the user has selected. You can add all the floor plans you need. Floor plans can’t share elements. All the canvas configuration is on the Top Menu

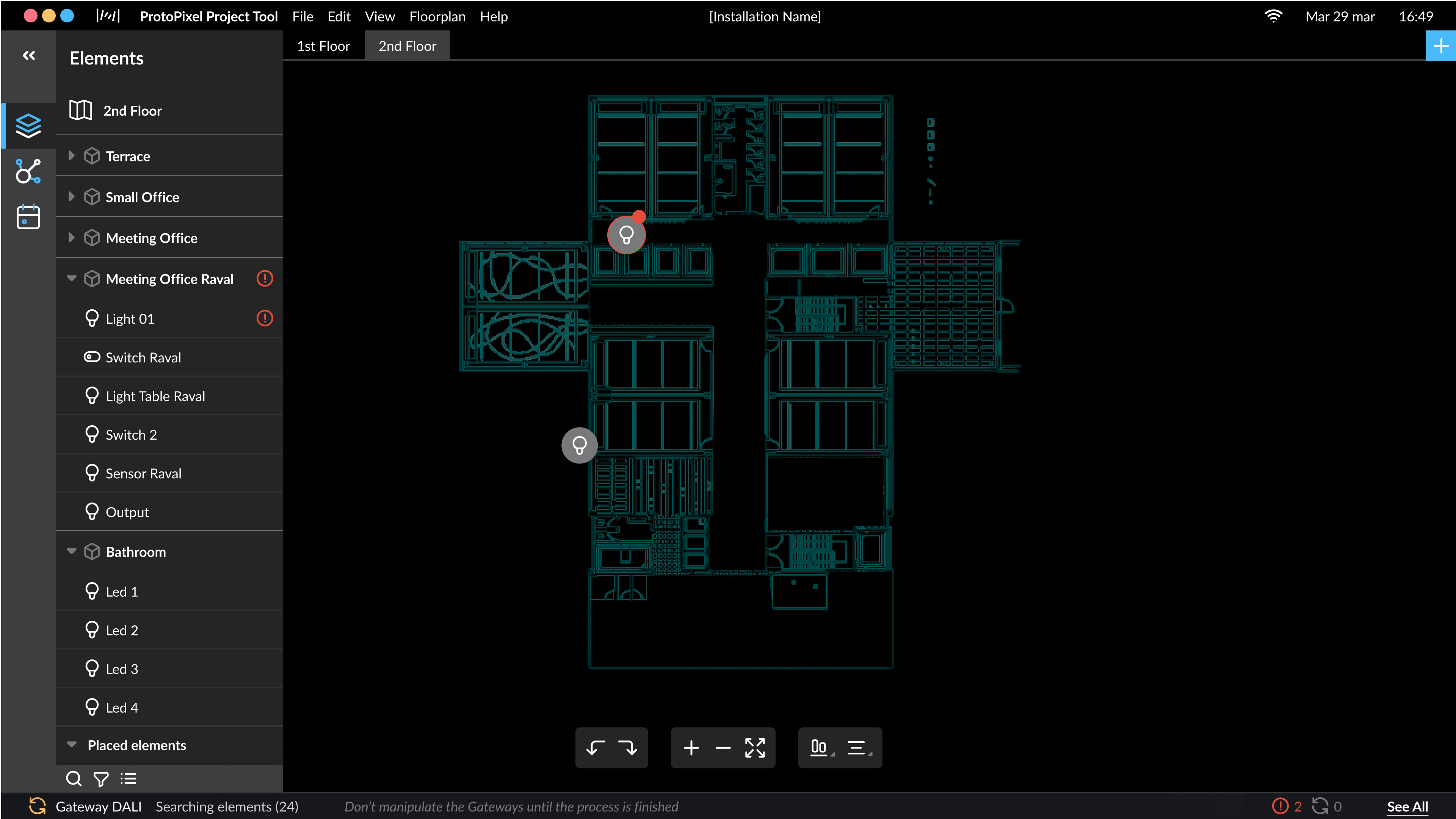

Satus bar
The status bar is a part of the user interface (UI) that displays ongoing background processes. It provides information about processes that may take a few moments to complete. The status bar keeps you informed about tasks such as saving moods, starting scheduler events, and addressing connectivity issues.
