Control your luminaires

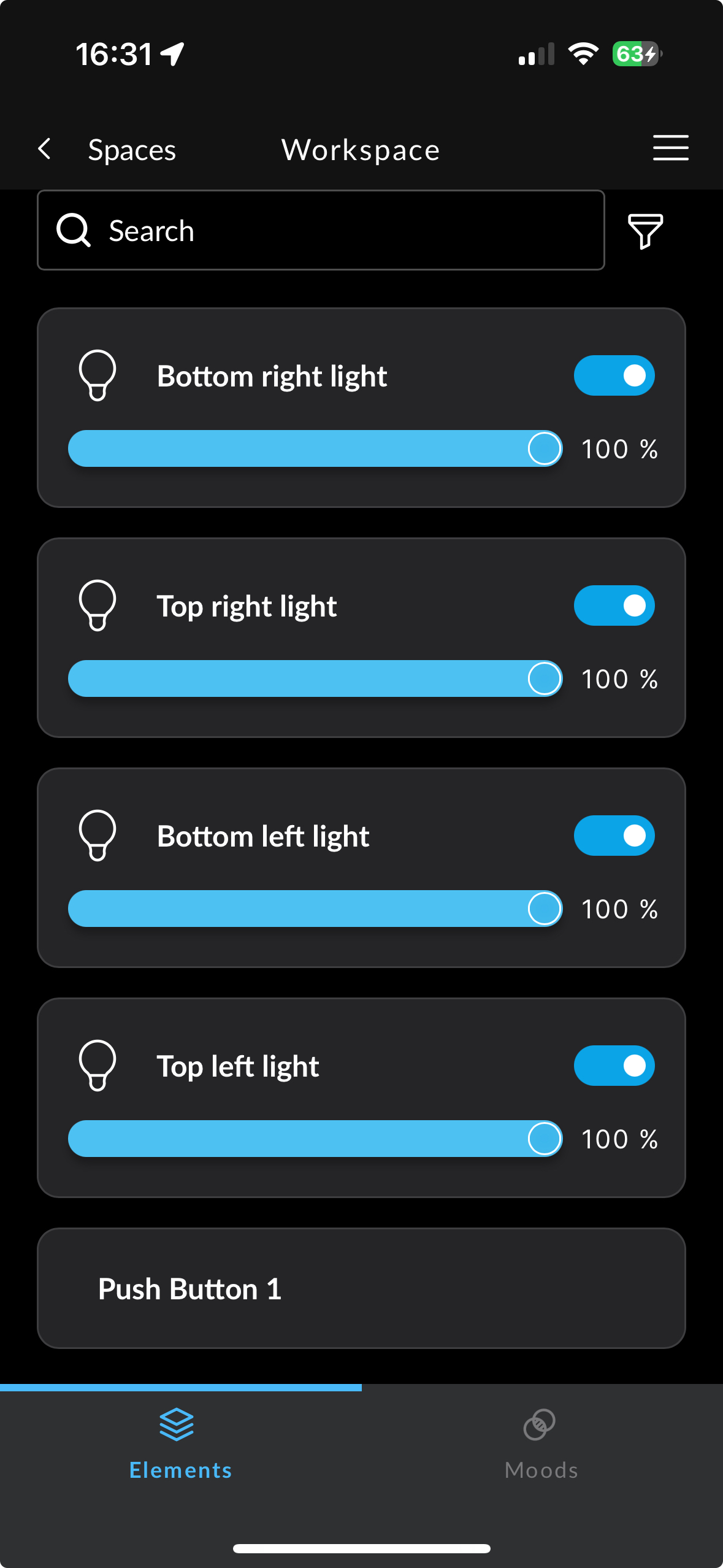

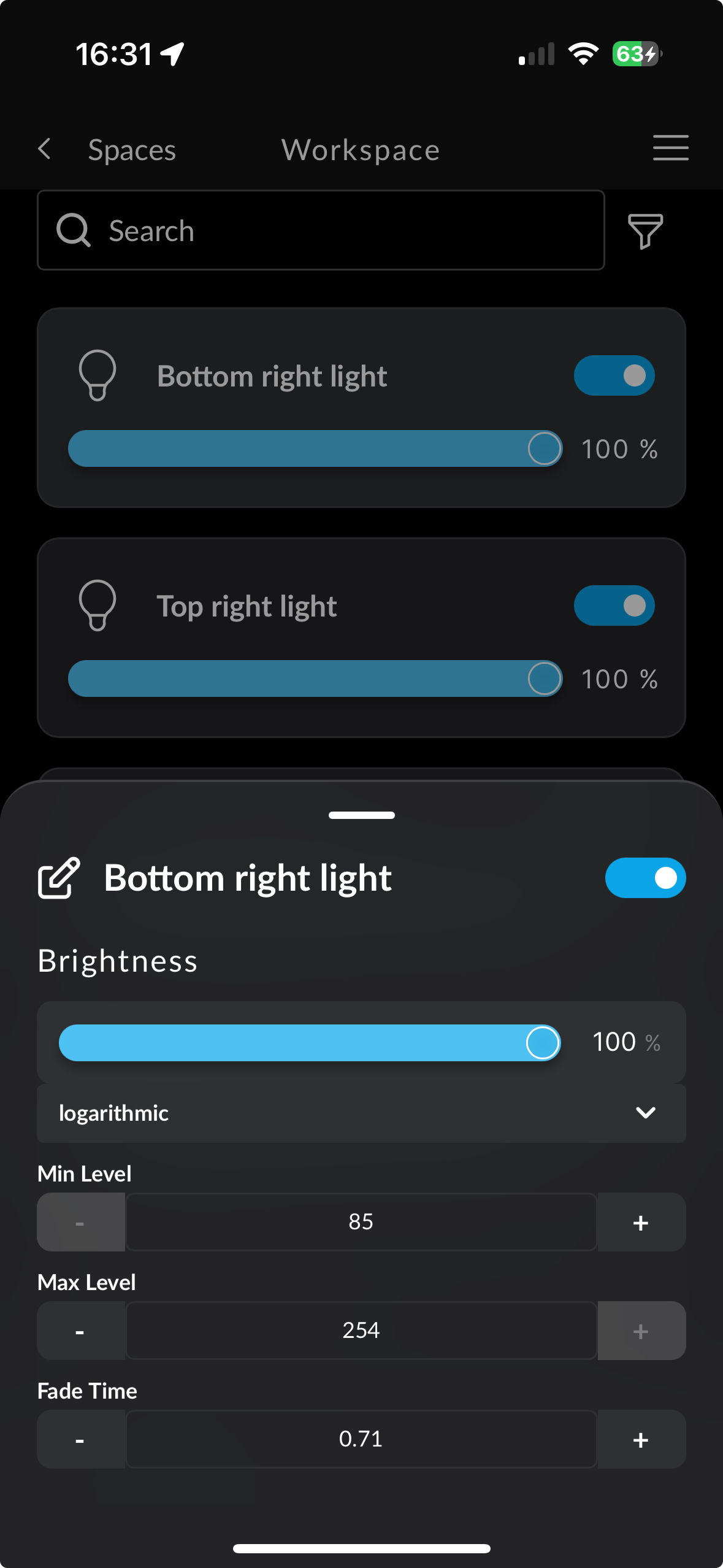

To control a luminaire, you need to select it from the Elements list. This action will automatically open the properties panel. In the properties panel, you will find the selected luminaire's capabilities displayed.

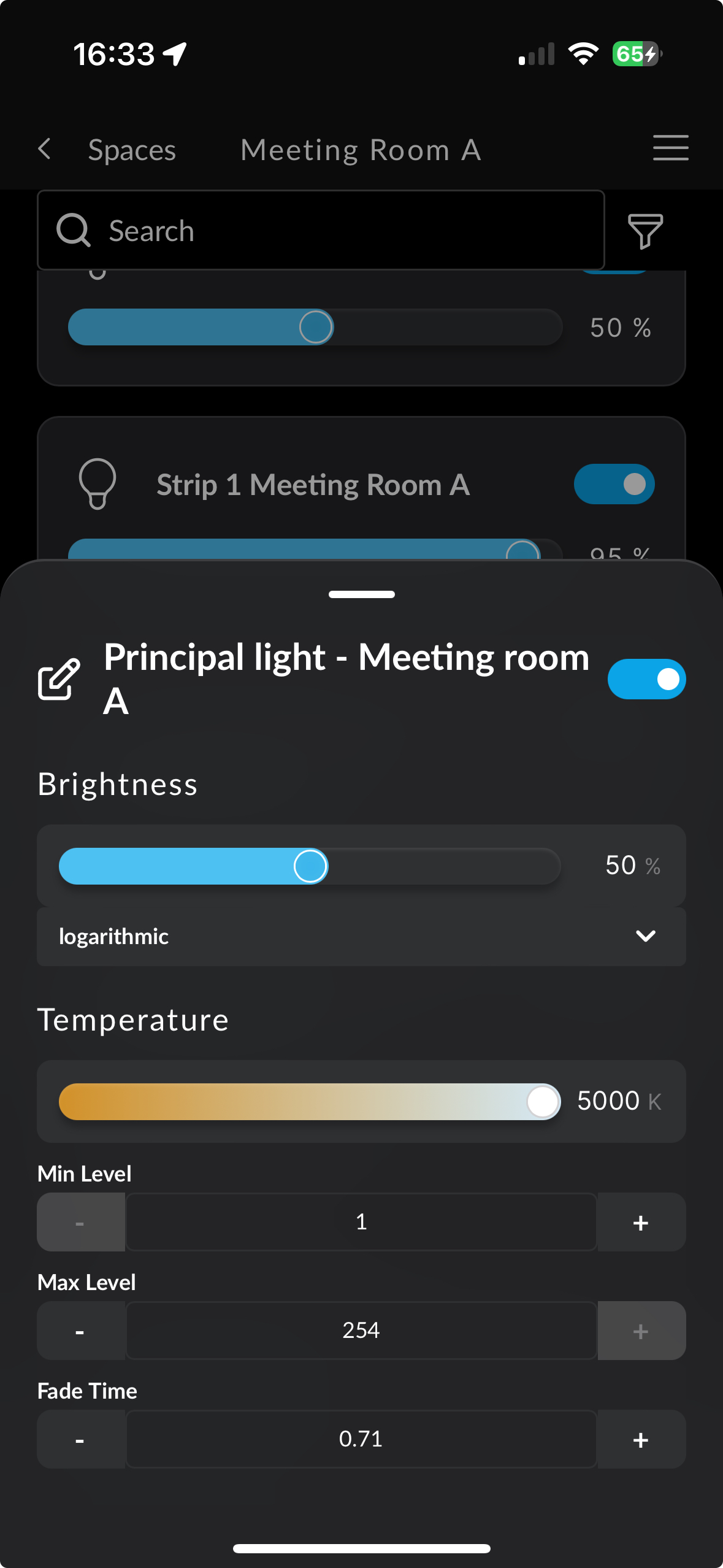

Capabilities control

You will only see the selected luminaire's capabilities, which may include:

• Brightness: drag the brightness bar to change the luminaire brightness, from 0% to 100%. The brightness will be limited to the min and max level configured in the DALI ballast.
• Color temperature: drag the color temperature bar to change the luminaire color temperature. This value will be limited to the min and max kelvin levels configured in the DALI ballast.
• OnOff: for turning on or off the luminaire just tap on the switch included at the top-right of the luminaire area.



Configuration

• Min Level: The minimum brightness level that the luminaire can reach
• Max Level: The maximum brightness level that the luminaire can reach
• Fade Time: The period of time it takes for the luminaire to turn on or off
