Control your luminaires

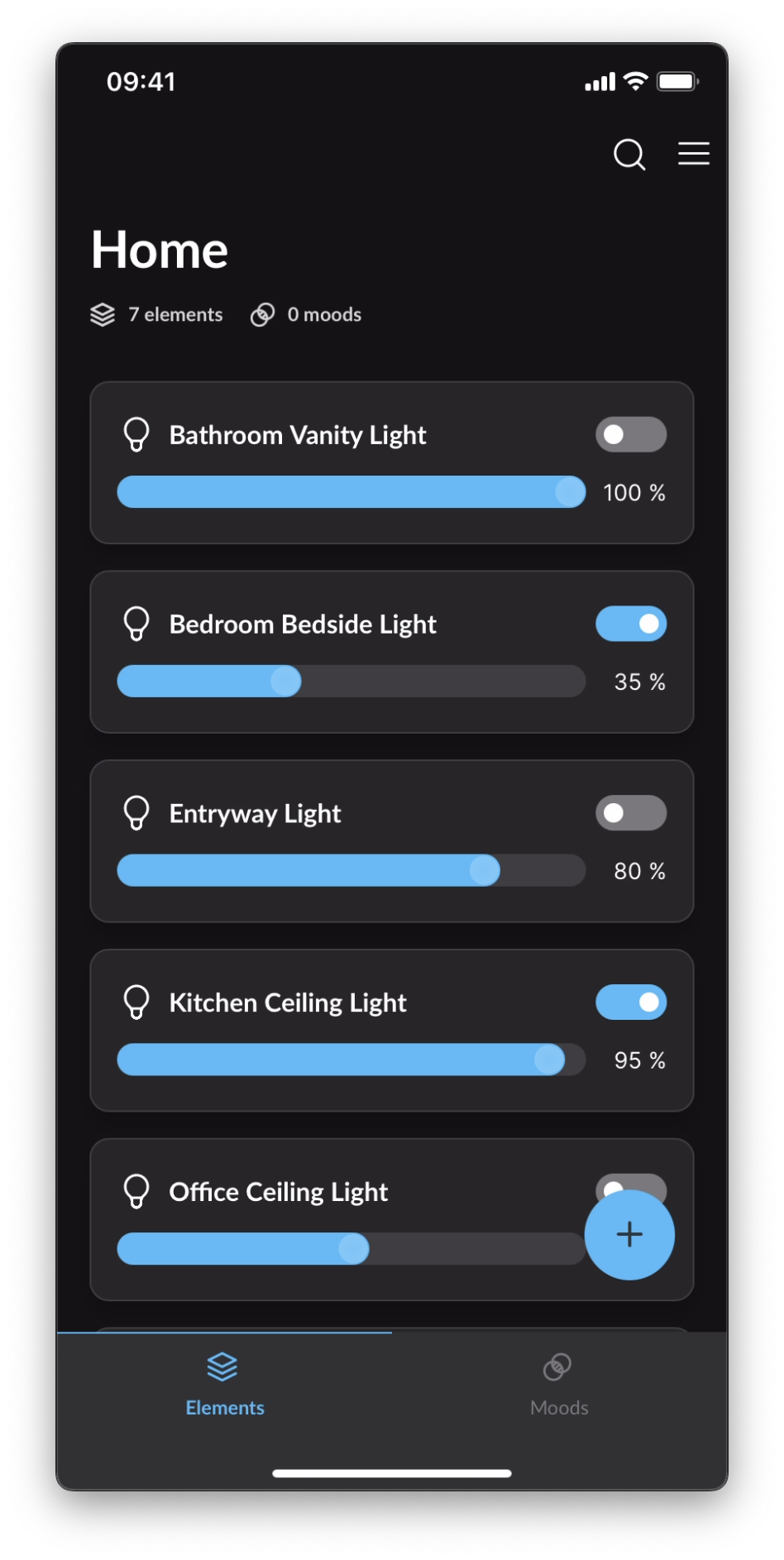

To control a luminaire, select it from the Elements list. This action automatically opens the properties panel, where you'll find the selected luminaire's capabilities displayed.

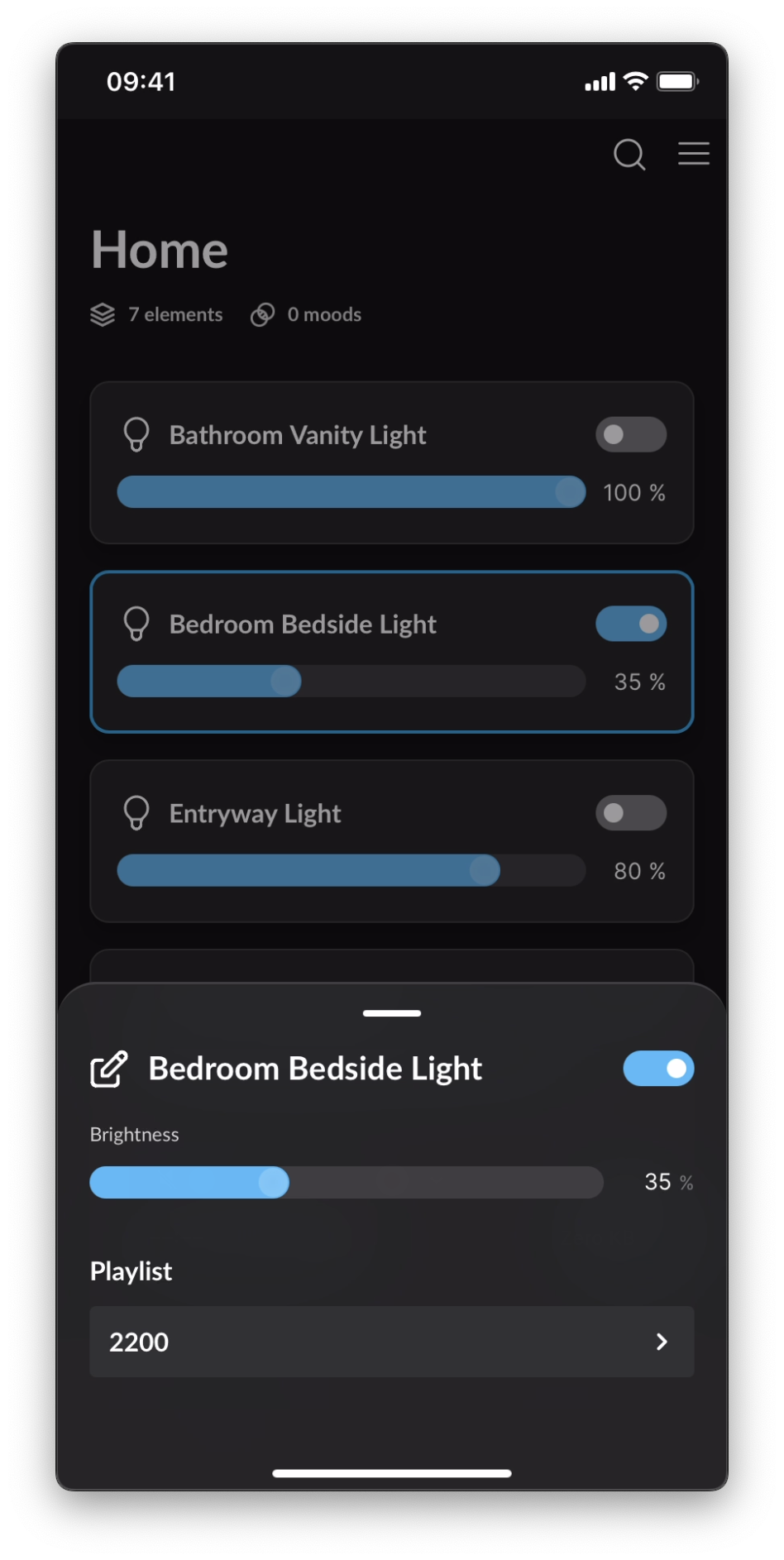

Capabilities control

The selected luminaire's capabilities will be displayed, which may include:

• Brightness: Adjust the luminaire's brightness from 0% to 100% by dragging the brightness bar. The range is limited to the minimum and maximum possible.
• On/Off: Turn the luminaire on or off by tapping the switch in the top-right corner of the luminaire area.
• Color temperature: If the luminaire has this capability, you can adjust its color temperature from cool to warm light.

Recorded contents

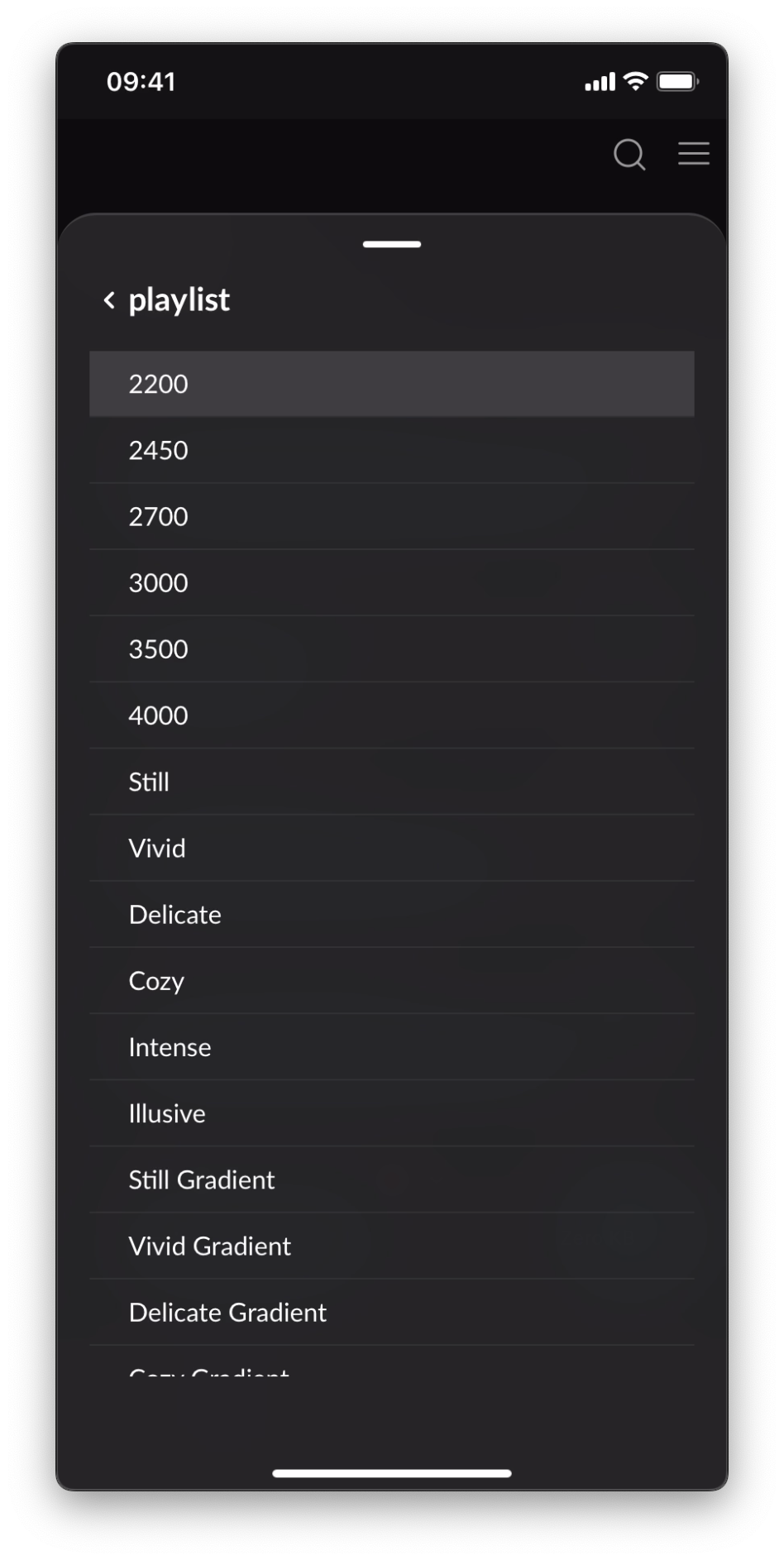

Some luminaires offer various content options that you can switch between to, for example, create different moods. When you access the element properties panel for a luminaire with content options, you'll see a "Contents" menu. This menu displays a list of available content choices. After selecting a content option, you'll see it reflected on the luminaire.
