Setting up your floor plan

Using a .dxf file

When starting a new project or opening a new, secondary, floor plan, you have the option to either use a .dxf file or have no stencil on your canvas.

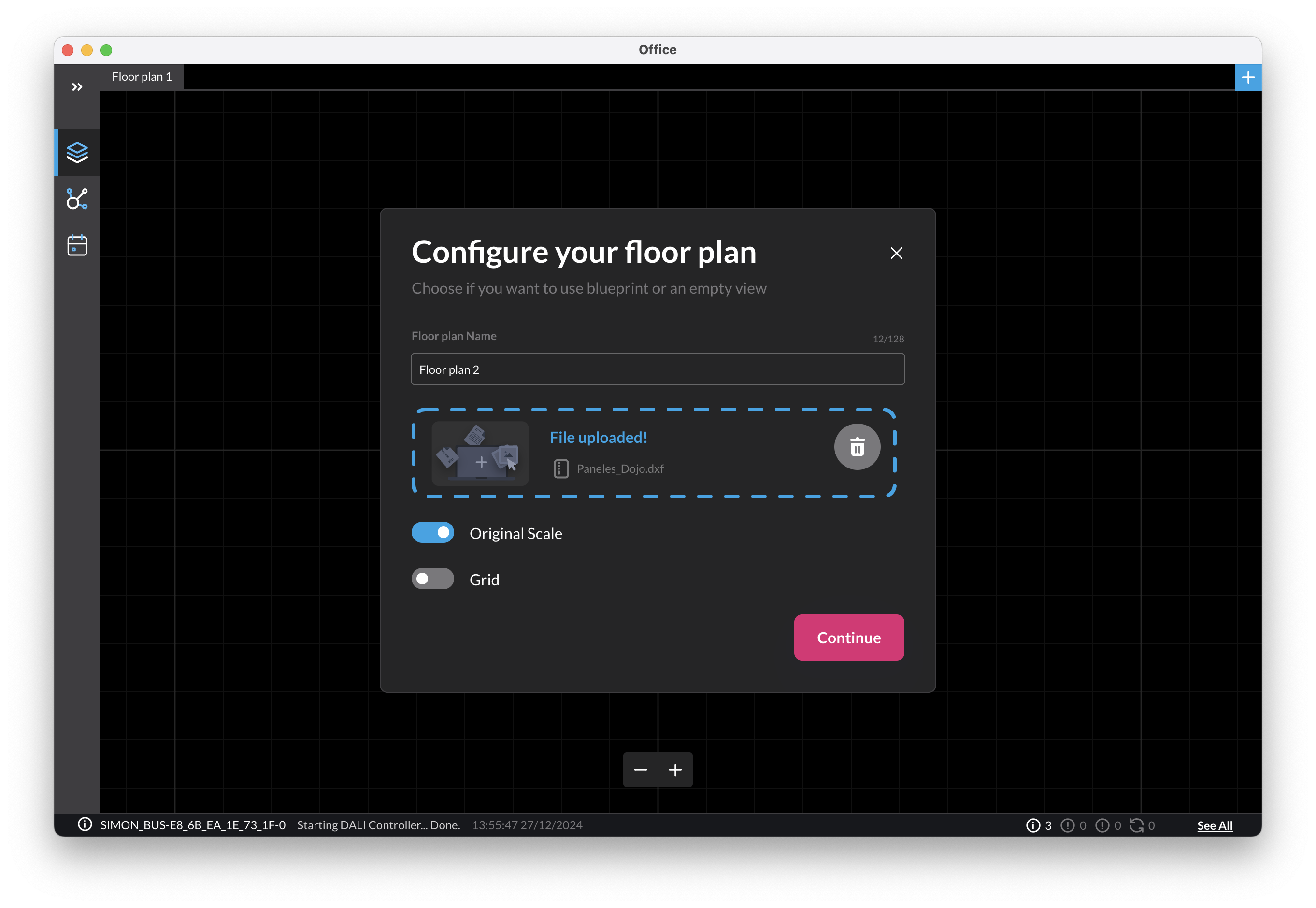

1.- Upload a .dxf file by clicking on "Upload" or drag your file into the square dashed pattern.

2.- Next, you will have the option to select the desired scale. If you do not make any changes, the document's original scale will be used by default.

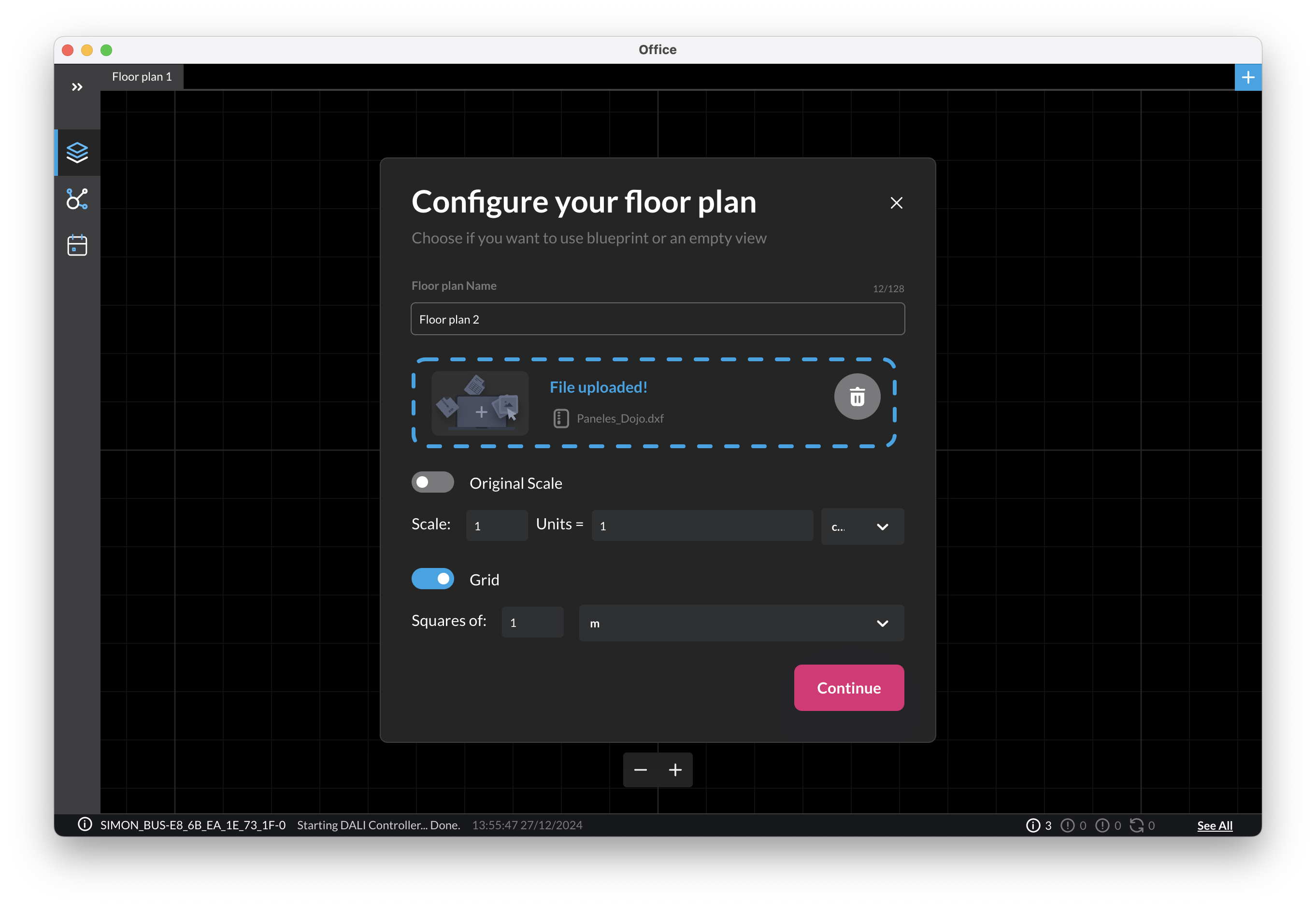

3.- If you wish to adjust the scale, you can turn off the "Original Scale" switch. Doing so will provide you with options to configure the units per measurement unit.

Grid configuration

You have the flexibility to decide whether to display a grid on your canvas and customise the measurement of the grid squares and the unit used.

If you want to hide the grid on your canvas, simply turn off the "Grid" Switch.
