Managing Spaces

Create a Space

With ProtoPixel Project Tool, you can create Spaces to organise your luminaires into groups of elements and control them collectively.

To perform this action, you can select the elements directly from the floor plan or from the list of elements on the left. Hold down + CMD/Ctrl and click on the item or group to select more than one. You can also drag on the floor plan to select elements placed within it.

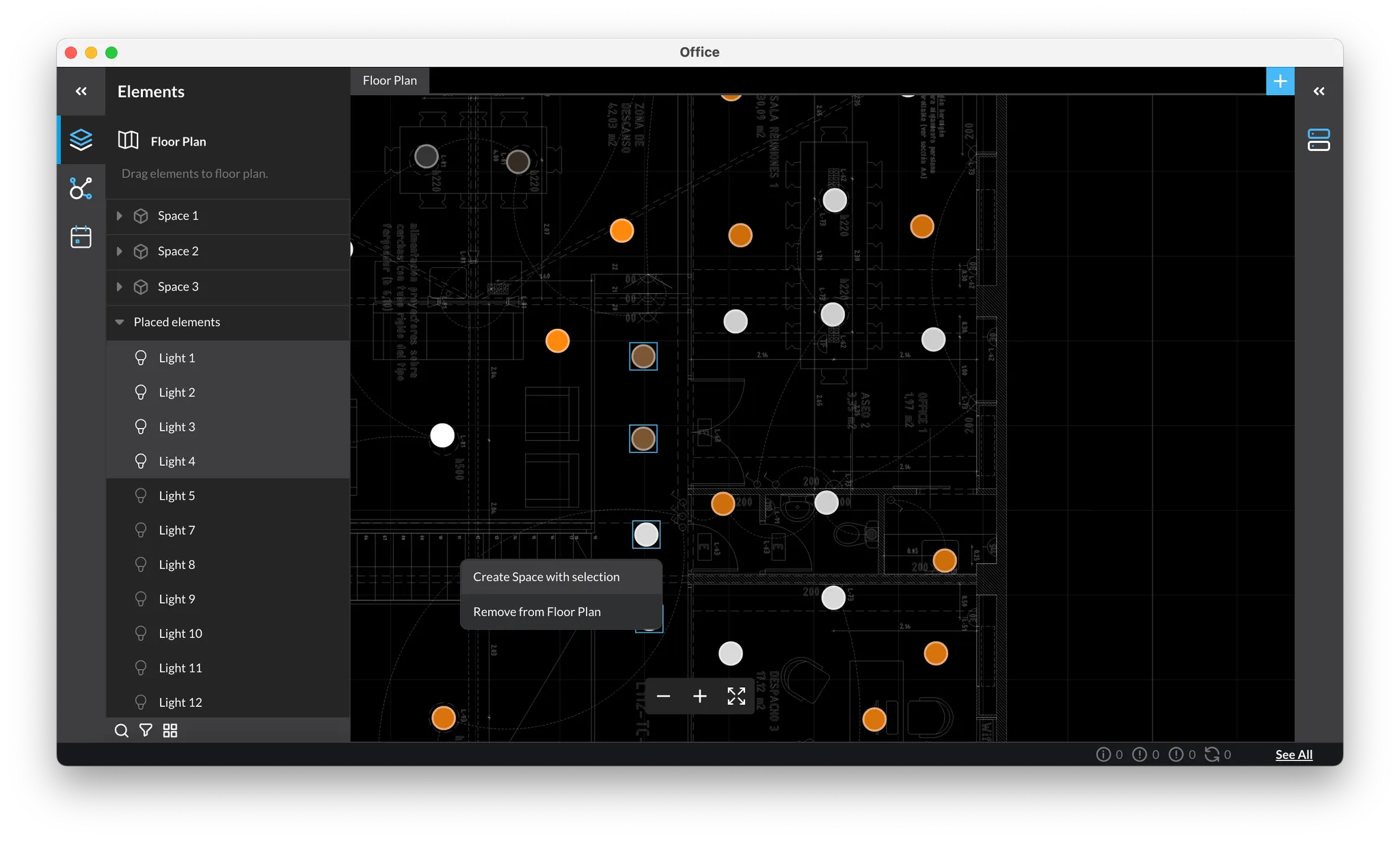

Once the selection is made, right-clicking will display the option to Create Space with the selection. A Space will be created, and you can double-click on the newly created space to change its name.

To create a Space, all Space elements must be placed.

Spaces can be accessed from the element's List menu.

Edit a Space

Add elements

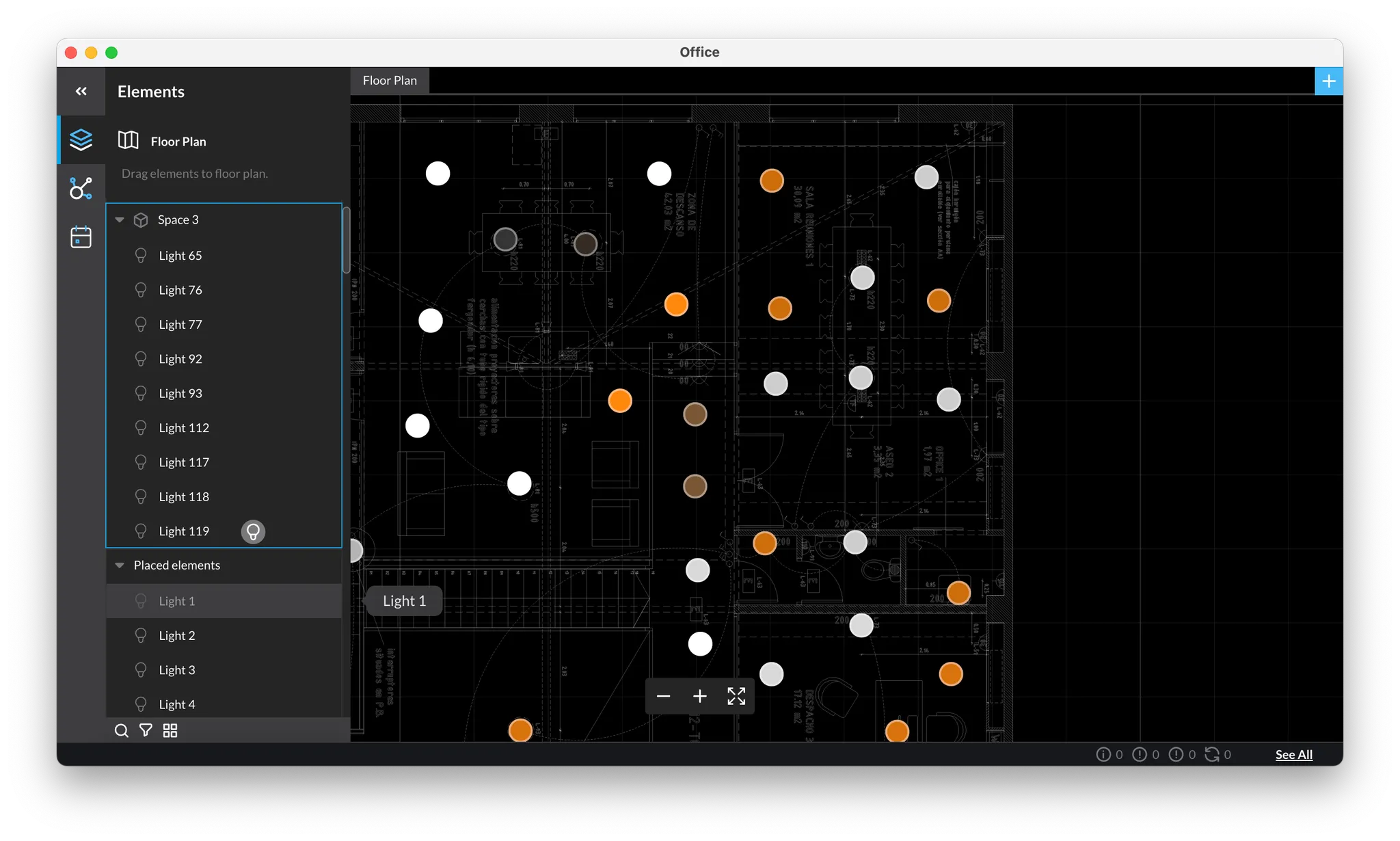

To add an element to a Space, simply drag and drop it from the Elements list onto the desired Space.

Remove elements from a Space

When you right-click on an element from the floor plan, you will see the options to edit the element, including the option to Remove element from the Space.

Alternatively, you can edit the elements of a Space by accessing the list of elements located on the left. Right-click on the name of the element, and you will see the option to Remove element from Space.

When you remove an element from a Space, that element will not be involved in any group action or mood that is executed, created, or edited within that space.
