How to access to the WebApp

Access through Protopixel Mapping Tool

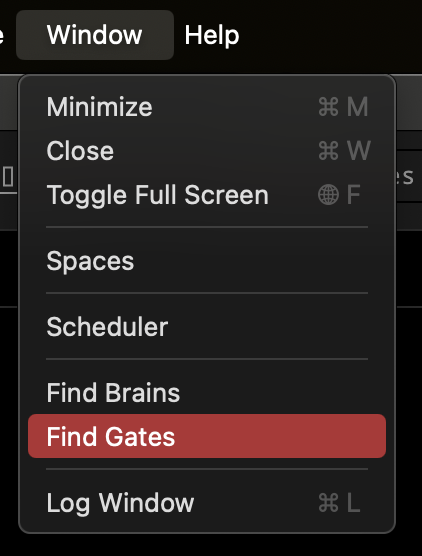

1. Open Protopixel Mapping Tool, once the app launches, click "Window" that is located on the top menu bar.
2.  Select the option "Find Gates".

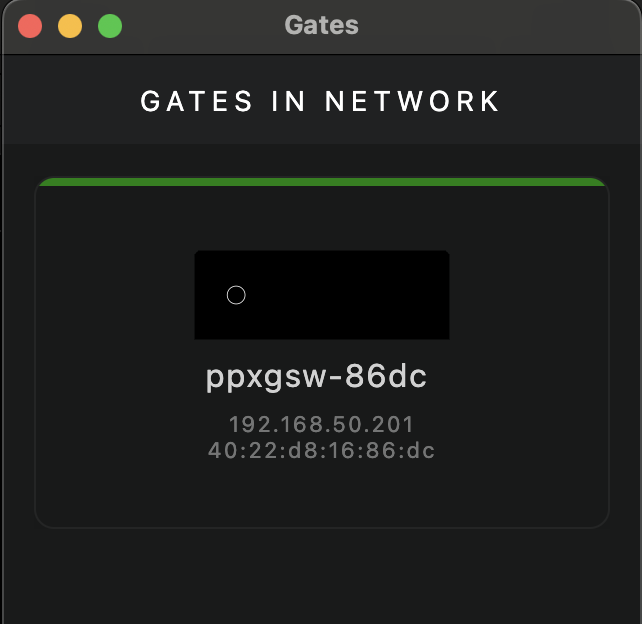

3. Then the SPI Gate Wired will appear.

💡 Important Tip: To view the SPI Gate Wired, ensure you are connected to its access point or residing on the same network via Wi-Fi or Ethernet. 💡

4. Access the Player WebApp with one of the following ways:

• Click the card to open it via the ProtoPixel Mapping Tool.

• Or, copy the IP address shown on the card and paste it into your browser's address bar.

Notes

• Once you have the IP address, you can access the WebApp from any device (PC, tablet, or smartphone). Ensure your device is either connected directly to the Gate SPI Wired Access Point or is on the same local network as the Gate.

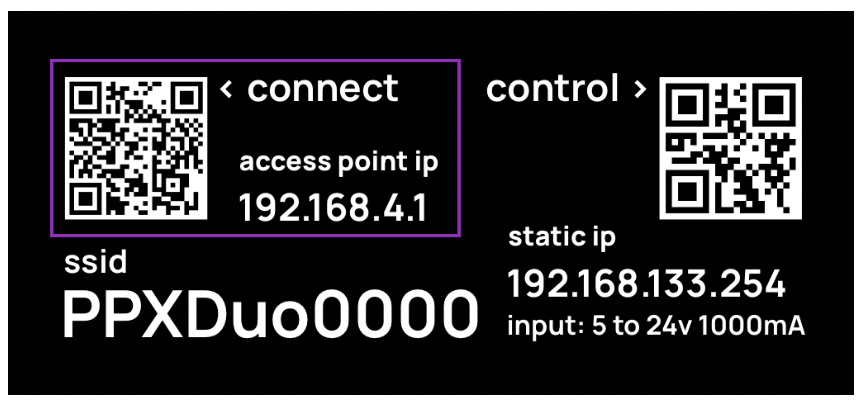

• If you are connected directly to the Gate’s Access Point, access the WebApp using the default Access Point IP address. This IP can be found on the information label located on the bottom side of the device.
