Mood

What is a Mood?

A Mood is the representation of a certain configuration of settings for a given number of Elements (which could be fixtures, LED tape, switches, blinds, etc)

These include configuration options for content parameters.

They are the representation of all the states in your Space. They include dimming, the element's color, the content parameters, etc.

What kind of Moods can you create?

First, you should add content to your project using ProtoPixel Mapping Tool. You can create as many Moods as you imagine, including dynamic content, interactive parameters, or customizable solid colors.

Steps

Once you have your project mapped, with the Elements and Zones within your Global Space or added to other spaces:

1. From ProtoPixel Mapping Tool open an existing project. From the menu bar go to Window > pen the Spaces App.
2. Select the space where you want to create the new Mood. Select the Manager view to access the advanced options by touching the three dots.
3. Select an Element, you can configure the content from the parameters that are below the list of elements.
4. Use the + button to add a new Mood, name it. Tap once on the new Mood icon to configure its content.
5. Update to save the changes or Discard them.

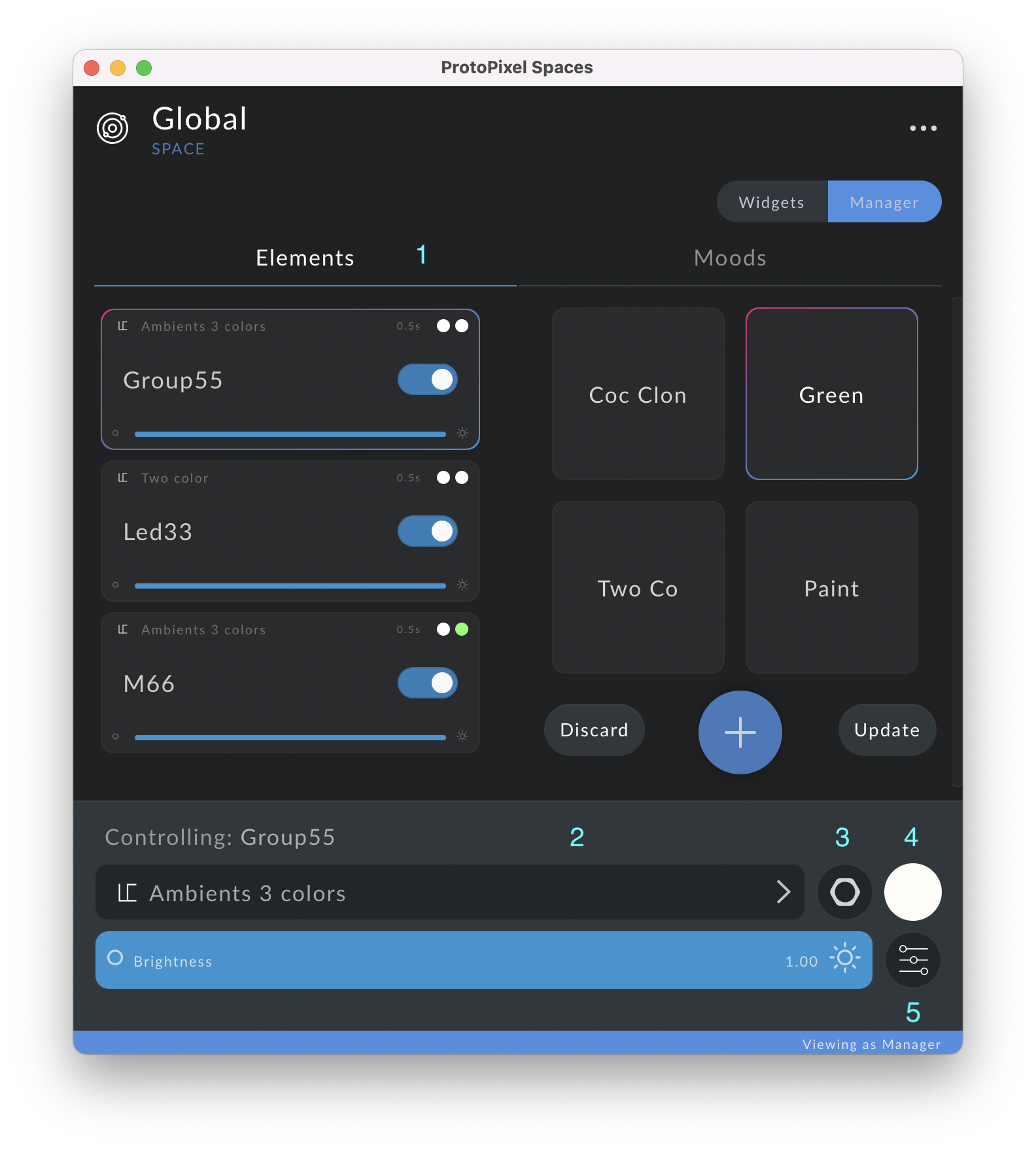

1. Select → Choose an Element where you want to add the mood
2. Controlling → Select the content of your Element or Zone
3. Parameters → Set up the content
4. Select color type → Original, Monochromatic or Solid Color
5. Brightness settings: Set up the transition time of the content, and set up the glitter size of each color component.

Using Native Apps

Download the app on your device from the App Store or Google Play.

1. Open your Spaces App and connect to the node by accessing its hotspot.
2. Select a project and a space where you want to create a Mood.

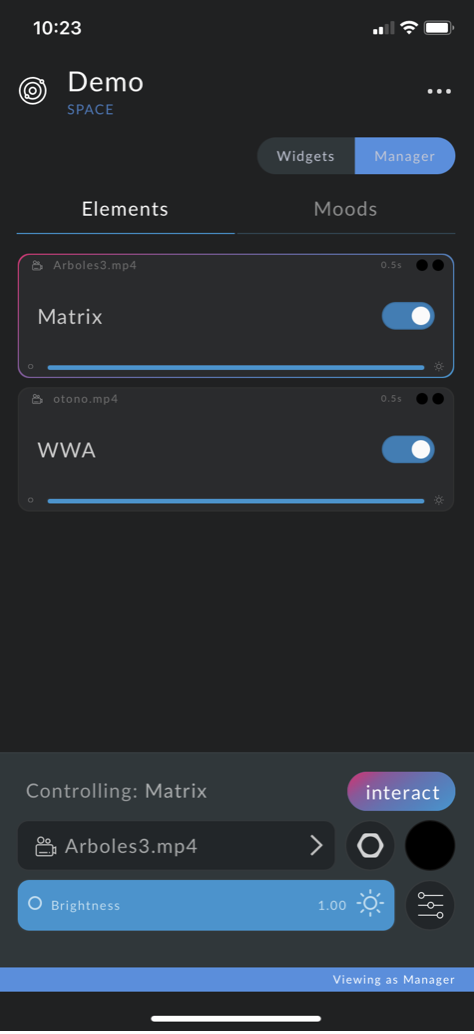

3. Select the Manager view to access the advanced options by touching the three dots.

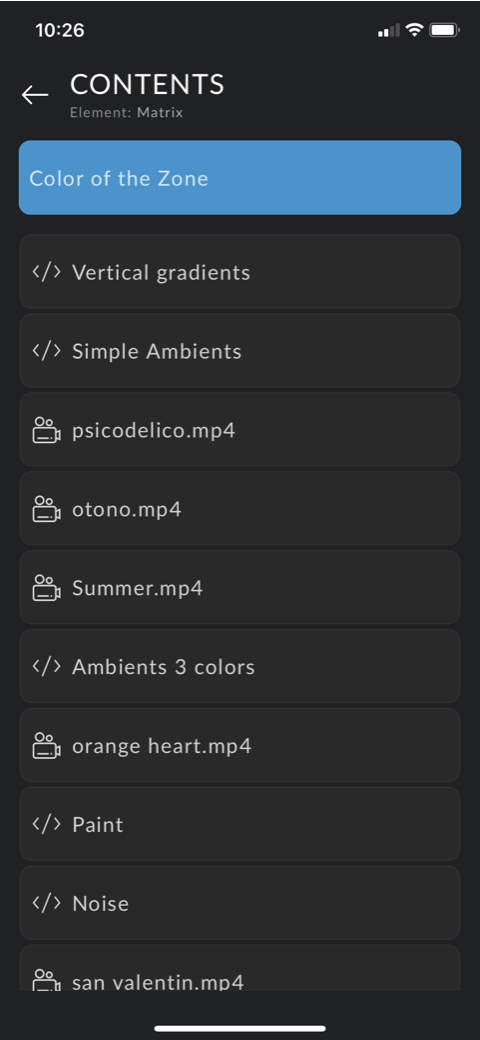

4. Choose an Element, select and set up the content.

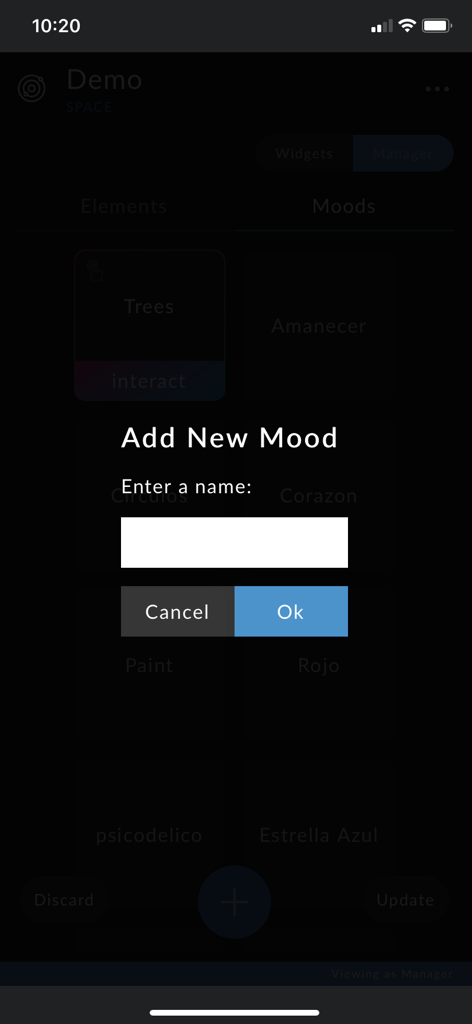

5. Use the + button to add a new Mood, name it. Tap once on the new Mood icon to configure its content.
6. Update to save the changes or Discard them.

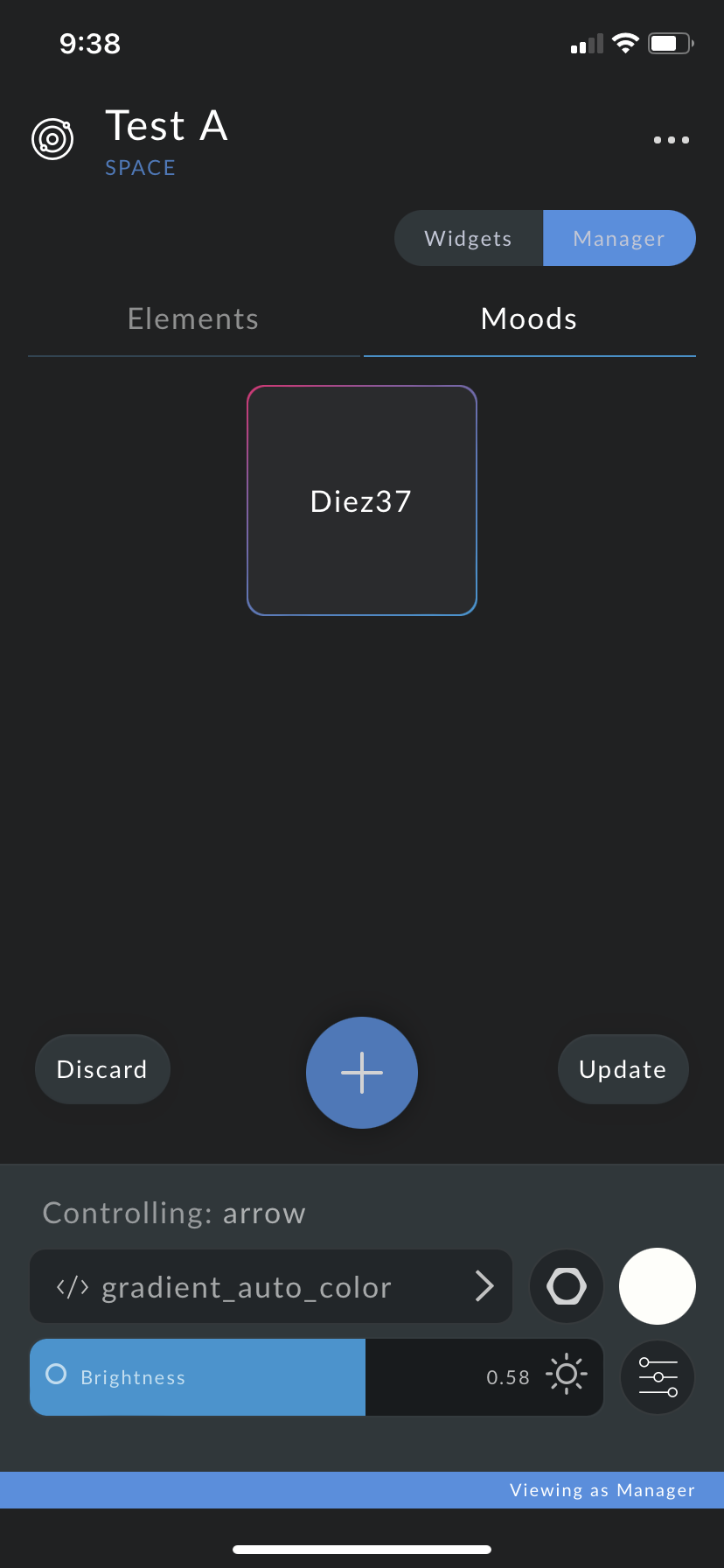

         View as Manager.                                     Set up content                                 Add a new Mood                 Update or discard the changes

💡 Watch how to configure Moods from ProtoPixel Node
